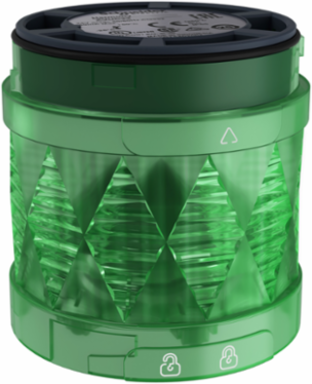

Schneider Electric XVUC23 Harmony XVU Modular Tower Light, 60mm, Green LED, IP65, 24V AC/DC
- MPN: XVUC23
- PPN: SCH-XVUC23
CAD
$106.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This green illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Features
- The XVUC23 is a premium illuminated indicator segment belonging to the high-performance Harmony XVU series of modular tower lights. This component is designed exclusively as an add-on stackable lens segment, requiring a compatible XVU base unit and top cover assembly to create a functional machinery status network. It is widely used across high-throughput industrial environments including automotive manufacturing lines, packaging machinery, and electronic assembly stations to broadcast real-time operational feedback.
- This indicator block features a bright green polycarbonate lens that projects a highly visible, steady light signal. The internal light engine uses a high-efficiency integral LED configuration that delivers uniform, omnidirectional light distribution without dark spots or fading. This steady green signal is standard for communicating optimal running conditions, safe process parameters, or complete automation cycles to plant floor supervisors from significant distances.
- The module draws a lean maximum current consumption of 50 mA or less and exhibits a maximum power dissipation of 2.5 Watts. This low-power consumption minimizes thermal strain inside the stacked assembly and allows the light paths to run directly off PLC transistor outputs or centralized auxiliary circuit cards.

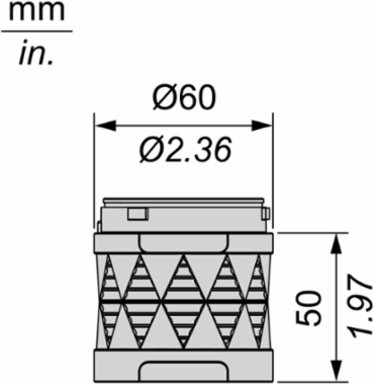

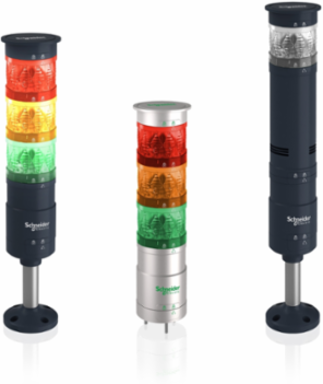

- Built for flexible tool-free customization, this stackable element features a standard outer mounting diameter of 60 mm (2.36 inches) and a standalone structural height of 50 mm (1.97 inches). Up to five individual illuminated units can be stacked vertically onto a single base unit, or up to four illuminated modules can be paired with an independent audio buzzer module. The interlocking push-and-twist mechanical connection establishes clean, integrated electrical bus routing through internal pins without requiring internal wiring harnesses between layers.
- The outer cylinder is molded from heavy-duty polycarbonate that meets stringent UL 94 V-2 and V-0 flame-retardant safety standards. When properly locked together as part of a complete tower light assembly, the joints achieve a validated IP65 ingress protection score. This prevents heavy ambient dust, processing debris, and directed water jets from compromising the electrical contact path, enabling smooth operation across a temperature span from -25°C up to 50°C.
- The module features a sustainable design with formal Green Premium certification, ensuring it is entirely free of mercury and matches modern environmental initiatives. To streamline the integration process for panel fabricators and safety managers, the device carries complete UL, CSA, and CE certifications. This ensures it meets the rigid electrical safety standards required for straightforward facility approval from provincial and municipal field inspectors across Canada.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XVU
- Light Source
- LED, green
- Component Name
- XVU
- Device Application
- automotive || packaging machine || machine tools
Mounting Diameter60 mm
Product Or Component Typemodular tower light
Beacon Or Indicator Bank Unit TypeLED unit
Complementary
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Current Consumption
- <= 50 mA
- Net Weight
- 0.064 kg
- Signalling Type
- steady
MaterialPC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
Length50 mm
Maximum Power Dissipation In W2.5 W
Assembly Stylecustomer assembly, up to 5 units || up to 4 units with buzzer
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403004EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1403004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CSA || UL || CE
- Ip Degree Of Protection
- IP65
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-50 °C
Vibration Resistance2 gn
