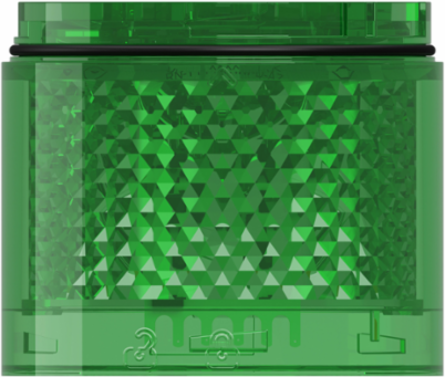

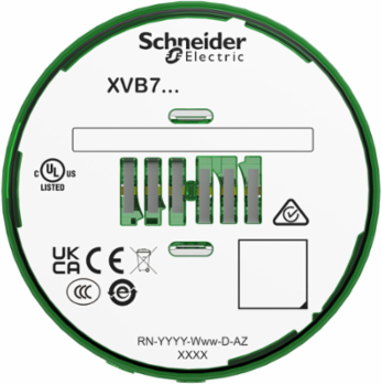

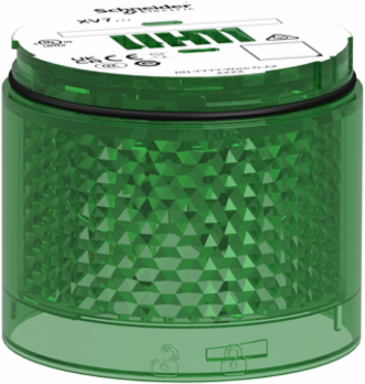

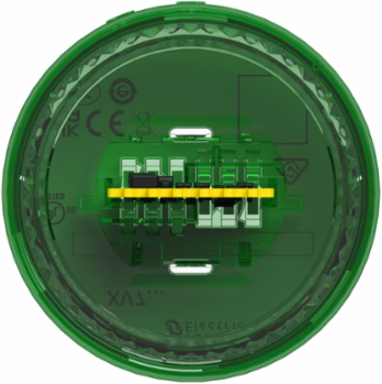

Schneider Electric XVB7C23 Light Module, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Steady, Colored Lens
- MPN: XVB7C23
- PPN: SCH-XVB7C23
CAD
$97.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Light Module, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Steady, Colored Lens
Features
- Featuring a high-intensity 24V AC/DC Green LED, this illuminated bank provides a clear, unmistakable visual status signal even in high-ambient light environments. The long-lasting LED technology eliminates the constant maintenance of incandescent bulb changes, ensuring your automated machinery status is always visible to operators from a distance, which significantly improves facility response times.
- Built with a rugged polycarbonate housing and high-grade seals, this signal unit is rated for IP65 and NEMA 4X protection against dust, oil, and high-pressure water jets. This heavy-duty construction makes it the ideal choice for food and beverage processing, outdoor installations, or harsh manufacturing cells where moisture and contaminants would typically cause standard electronics to fail.

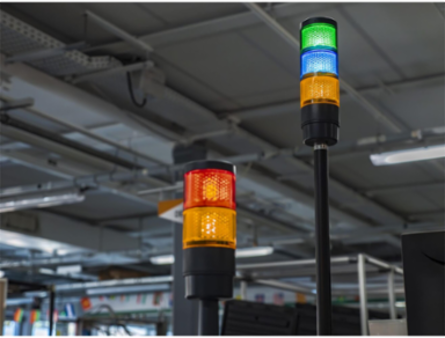

- Designed for tool-free assembly, this 70mm lens unit snaps directly onto any Harmony XVB universal base or existing light tower stack. The modular design allows industrial engineers to quickly reconfigure signaling sequences or replace individual colors without rewiring the entire assembly, drastically reducing labor costs during production line changeovers.
- This unit is engineered for a steady-on light effect, the industry standard for indicating "Ready" or "Normal Process" status on a production line. By providing a constant green glow, it offers a calming, immediate confirmation to floor supervisors that the system is functioning within safe parameters, reducing operator anxiety and streamlining workflow monitoring.
- Fully UL, CSA, and CE certified, this Schneider Electric component is manufactured to meet the world s most stringent electrical safety and performance standards. Using officially recognized signaling equipment ensures your machinery remains compliant with global safety directives and helps your facility pass rigorous ISO or OSHA safety audits with zero non-conformance issues.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
Important Information Attributes
- Device Composition
- standard lens, standard lens
- Certificate Agency
- cULus, CCC, RCM, UKCA, CE
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.10489713268981493, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.2664420743959004
- Local Data Status
- Publishable
- Pre Comm Date
- 2025-01-27
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- XVB7
- Inrush Current
- 0.5 A
- Material
- PC (polycarbonate)
- Mounting Position
- upright/inverted
- Product Or Component Type
- light module
- Returnability
- Yes
- Shock Resistance
- 30 gn 6 ms) in operation
- Sustainable Packaging
- No
- Vibration Resistance
- 6 gn +/- 0.5 mm 10-500 Hz)in operation
- Light Source 1 Light Block Color
- green
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 87
- [Ui] Rated Insulation Voltage
- 50 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8531809051
Signalling Typesteady, steady
Carbon Footprint Of The Distribution Phase [A4]0.036722602441215335, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0005847744167611104
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]30 kg CO2 eq., 29.754100014989103
Local Publishable Date2026-03-26
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2447
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Current Consumption35 mA 24 V AC40 mA 24 V DC
Electrical Shock Protection Classclass II
Light SourceLED, green
Mounting Diameter70 mm
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XVB7
Service Life In Hours50000 h
Software Versionv6.2.4
Total Lifecycle Carbon Footprint31 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2501029EN
Pep Verification Date2025-06-28
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ue] Rated Operational Voltage24 V AC/DC
[Uimp] Rated Impulse Withstand Voltage0.5 kV
Package Weight(Lbs)105.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 31.16274659893279
- Environmental Disclosure
- ENVPEP2501029EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501029EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionUL type 4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
