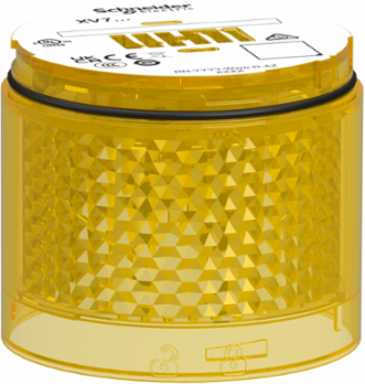

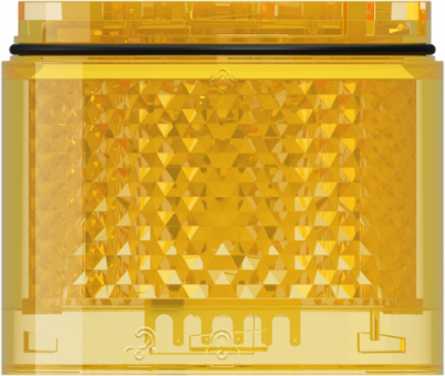

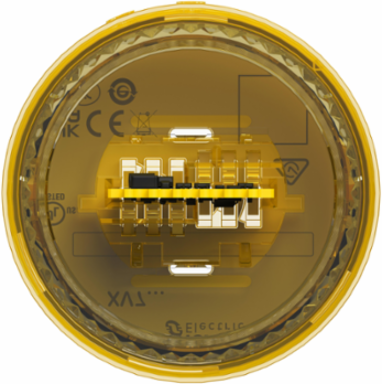

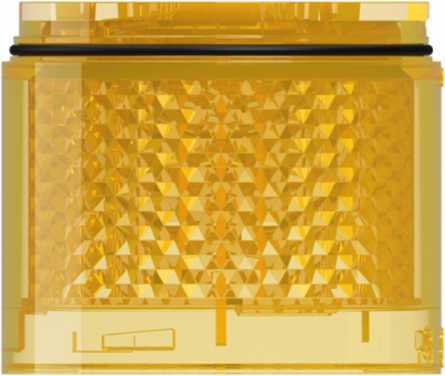

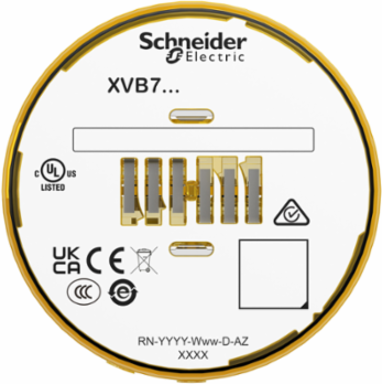

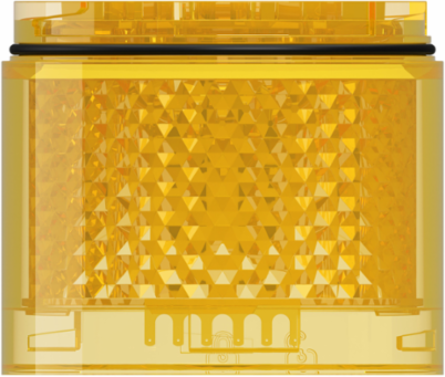

Schneider Electric XVB7C58 Light Module, Harmony XVB7 Modular Tower Light, Yellow, Ø70mm, Blinking, Colored Lens
- MPN: XVB7C58
- PPN: SCH-XVB7C58
CAD
$150.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Light Module, Harmony XVB7 Modular Tower Light, Yellow, Ø70mm, Blinking, Colored Lens
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, Indonesia, Philippines, United States |
|---|
Complementary Attributes
| Rated Operational Voltage Limits | 21.6...26.4 V AC/DC |
|---|
Important Information Attributes
| Device Composition | standard lens, standard lens |
|---|---|
| Certificate Agency | cULus, CCC, RCM, UKCA, CE |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.10489713268981493 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.2664420743959004 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2025-02-06 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2501029EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2447 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Blinking Frequency | 1 Hz |
| Device Short Name | XVB7 |
| Inrush Current | 0.5 A |
| Material | PC (polycarbonate) |
| Mounting Position | upright/inverted |
| Product Or Component Type | light module |
| Returnability | Yes |
| Shock Resistance | 30 gn 6 ms) in operation |
| Sustainable Packaging | No |
| Vibration Resistance | 6 gn +/- 0.5 mm 10-500 Hz)in operation |
| Light Source 1 Light Block Color | yellow |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; Germany, DE |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Global, GLO |
| Recyclability Potential In % | 87 |
| [Ui] Rated Insulation Voltage | 50 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531809051 |
| Signalling Type | blinking, blinking |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.036722602441215335, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0005847744167611104, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 11 kg CO2 eq., 11.463480313994092 |
| Local Publishable Date | 2026-03-26 |
| Pre Comm Date | 2025-02-06 |
| Stocking Flag | N |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Current Consumption | 40 mA 24 V AC45 mA 24 V DC |
| Electrical Shock Protection Class | class II |
| Light Source | LED, yellow |
| Mounting Diameter | 70 mm |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XVB7 |
| Service Life In Hours | 50000 h |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 13 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2501029EN |
| Pep Verification Date | 2025-06-28 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| [Ue] Rated Operational Voltage | 24 V AC/DC |
| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV |
| Package Weight(Lbs) | 105.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 12.872126897937783 |
| Environmental Disclosure | ENVPEP2501029EN |
| Ip Degree Of Protection | IP66 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-28 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2501029EN |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | UL type 4X/13 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2501029EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | light module |
|---|
| Range Of Product | Harmony XVB7 |
|---|
ETIM
| ETIM 8 | EC000232 |
|---|
| ETIM 9 | EC000232 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
