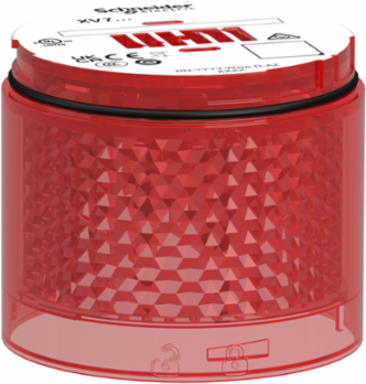

Schneider Electric XVB7C24 Light Module, Harmony XVB7 Modular Tower Light, Red, Ø70mm, Steady, Colored Lens
Schneider Electric XVB7C24 Light Module, Harmony XVB7 Modular Tower Light, Red, Ø70mm, Steady, Colored Lens
- MPN: XVB7C24
- PPN: SCH-XVB7C24
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$97.80/ EA
Description
Light Module, Harmony XVB7 Modular Tower Light, Red, Ø70mm, Steady, Colored Lens
Specifications
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
- Ui Rated Insulation Voltage
- 50 V
Ue Rated Operational Voltage24 V AC/DC
Uimp Rated Impulse Withstand Voltage0.5 kV
Important Information Attributes
- Current Consumption
- 35 mA 24 V AC, 40 mA 24 V DC
- Light Source
- LED, red
- Mounting Diameter
- 70 mm
- Product Or Component Type
- light module
- Carbon Footprint Of The Distribution Phase A4
- 0.036722602441215335, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0005847744167611104, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 10 kg CO2 eq., 10.189760279105856
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2025-02-06
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Electrical Shock Protection Class
- class II
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Shock Resistance
- 30 gn 6 ms) in operation
- Sustainable Packaging
- No
- Vibration Resistance
- 6 gn +/- 0.5 mm 10-500 Hz)in operation
- Warranty In Months
- 18
- Pep Code
- ENVPEP2501029EN
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Offer Owner Code
- 190786
Device Compositionstandard lens, standard lens
MaterialPC (polycarbonate)
Mounting Positionupright/inverted
Signalling Typesteady, steady
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.10489713268981493
Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 1.2664420743959004
Certificate AgencycULus, CCC, RCM, UKCA, CE
Local Publishable Date2026-03-26
Pre Comm Date2025-02-06
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2447
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameXVB7
Inrush Current0.5 A
Range Of ProductHarmony XVB7
Service Life In Hours50000 h
Software Versionv6.2.4
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Light Source 1 Light Block Colorred
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %87
Pn1
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Nema Degree Of Protection
- Type 4/4X/12/13 indoor use only
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2501029EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint11.598406863049547
Environmental DisclosureENVPEP2501029EN
Ip Degree Of ProtectionIP66
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
