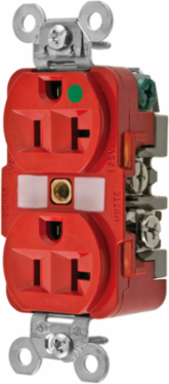

Hubbell Wiring Device-Kellems HBL8300RED Hospital Grade Duplex Receptacle, 20A 125V, NEMA 5-20R, Red

MPN: HBL8300RED
UPC: 783585247533
PPN: HBL-HBL8300RED
UNSPSC: 39121406

$90.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Red, Single Pack.

Features

Deep body design with impact resistant face
Patented ground contact provides redundant grounding
Unique bypass contact design
Circuit ID marking area
Standard Product

Specifications

Key Specifications

Country of Origin	United States
Dimensions	3.28 in x 1.65 in x 1.19 in
Horsepower - Maximum	1
Length	3.28 in
Standards - RoHS Compliance Status	CM
Application	Hospital Grade
Dielectric Strength	Withstands 2,000V minimum
NEMA Rating	5-20R
Number of Wires	3-Wire
Size	3.28 in x 1.65 in x 1.19 in
Standard	CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating	125 V
Wire Size	#12 AWG to #10 AWG
Weight	0.25 lb.
Engineering Drawing 1 Display Text	HBL8300RED AutoCAD Drawing
General Literature Asset 2 Display Text	Education Application Guide
Display Size	Standard Sized Product
Number Of Poles	2-Pole
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Class Code	A04
Freight Class Code	06168002
Image Actual Or Representative	A
Replaced Catalog Number	HBL8300R
Buy America(n) Qualified	TAA Compliant (All status valid till December 2026)
Current Rating	20 A
Series	Hospital Grade
BOX SIZE	3.500x9.900x4.500 (in)
Carton - Number of Sub Packs	10
Carton - SCC-14 Next Lower Level Sub Pack	783585247533
Case - Total Units	100 EA
Each - Pack Description	Each
Pallet - GTIN - Package	70783585247532
Pallet Length	48.000 in
Pallet Width	40.000 in

Current / Amperage Rating	20 A
Height	1.19 in
Industry Standard(s)	CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating	20 A
Color	Red
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
Number of Poles	2-Pole
Phase	Single Phase
Special Features	Standard Product
Type	Receptacle
Wattage	2500 W
Voltage Rating Description	125 V
Width	1.65 in
General Literature Asset 1 Display Text	Duct Products Guide
Connectivity	Back and Side Wired Screw Terminals
Nema Rating	5-20R
Number Of Wires	3-Wire
Style	Thermoplastic Polyester Face
Description - Invoice	DUP RCPT, HG, 20A 125V, 5-20R, RD
Harmonization Code	8536698000
MSDS Flag	No
Sub Class Code	A04A040
Material - Mounting Hardware	Screw Mounting
Material	Thermoplastic
Base Unit of Measure	EA
Carton - Gross Weight per Pack	2.8 lb.
Carton - Pack Description	Carton
Carton - Total Units	10 EA
Case Weight	11.452 lb.
Lowest Level UOM	Each
Pallet Height	39.200 in
Pallet Weight	1099.800 lb.
NAICS Code	335931A102
