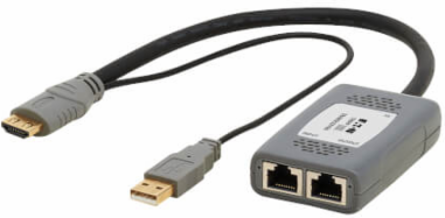

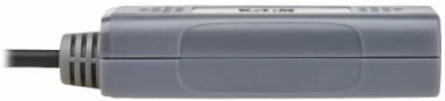

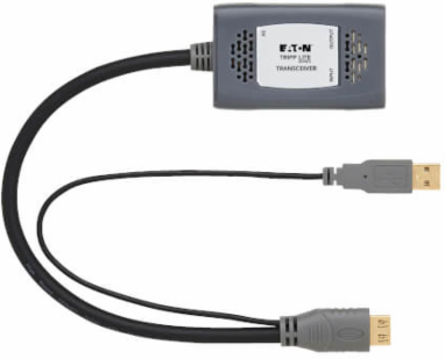

Tripp Lite B127U110PH HDMI over Cat6 Pigtail Receiver with Repeater, 4K 60 Hz, 4:4:4, HDCP 2.2, 230 ft, TAA
- MPN: B127U110PH
- UPC: 037332281463
- PPN: TRP-B127U-110-PH
CAD
$214.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDMI over Cat6 Pigtail Receiver with Repeater, 4K 60 Hz, 4:4:4, Transceiver, HDCP 2.2, 230 ft. (70.1 m), TAA
Documentation & Downloads
Specifications
Dimensions
- Form Factor
- Pigtail
- Cable Outer Diameter
- 7.3 mm
Wire Gauge28 AWG
Performance
- Color Depth
- 36-bit Deep Color
- HDR Support
- Yes
- Technology
- Cat6; HDMI; USB
- Video Output
- HDMI (Male)
- HDCP
- 2.2
- Power Source
- USB
- Recommended Cable
- 24 AWG Cat6
- Storage Temperature
- 5° to 122°F (-15° to 50°C)
Chroma Subsampling4:2:0; 4:2:2; 4:4:4
Transmission Distance230 ft (70 m)
Video InputRJ45 (Female)
Monitors Supported1
Daisy-chainableUp to 4 layers
Power Over Cable (PoC)No
Operating Temperature32° to 104°F (0° to 40°C)
Relative Humidity0–85% non-condensing
Material
- Housing Material
- Plastic
- Color
- Black
Cable JacketPVC
Reference
- Warranty
- 1-year limited
