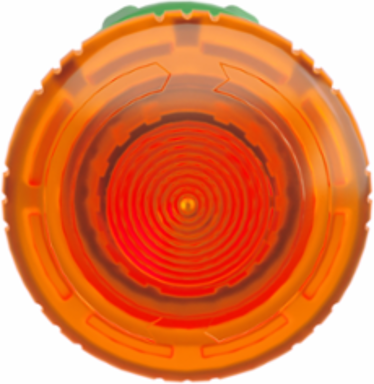

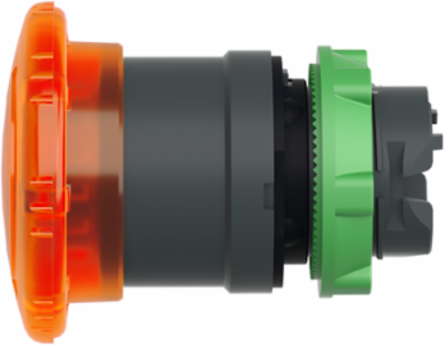

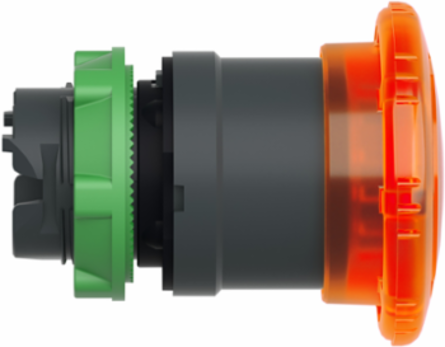

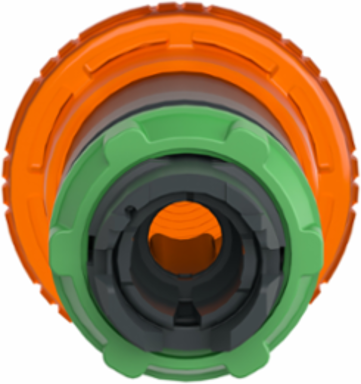

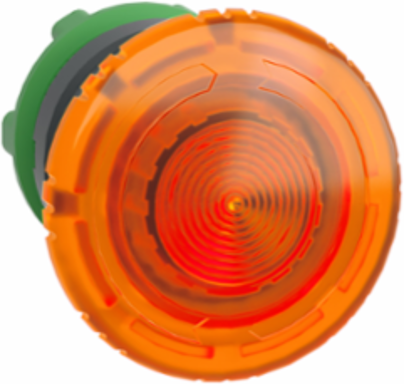

Schneider Electric ZB5AW753 Orange Mushroom Head for Illuminated Push Button 40mm, IP66, Latching
- MPN: ZB5AW753
- PPN: SCH-ZB5AW753
CAD
$123.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This orange illuminated 40mm mushroom shape button head for integral LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Reset
- turn to release
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for illuminated push-button
- Head Type
- standard
- Bezel Material
- dark grey plastic
- Product Compatibility
- universal LED
Range Of ProductHarmony XB5
Type Of Operatorlatching
Shape Of Signaling Unit Headround
Sale Per Indivisible Quantity1
Operator Profileorange mushroom Ø 40 mm, unmarked
Device Short NameZB5
Complementary
- Main Group
- mushroom head
- Net Weight
- 0.022 kg
- Device Presentation
- basic sub-assemblies
- Cap/Operator Or Lens Colour
- orange
- Marking
- unmarked
- Cad Overall Width
- 40 mm
- Group Of Product
- mush. turn to release illum
Electrical Composition CodeM6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M3 4 single front mounting integral LED || M4 4 single and double front mounting integral LED
Cad Overall Height40 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Mechanical Durability300000 cycles
Station NameXALD 1 cut-out || XALK 1 cut-out
Cad Overall Depth50 mm
Environment
- Product Certifications
- UL listed || CSA || BV || GL || LROS (Lloyds register of shipping) || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 || IP69K
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TC
Ik Degree Of ProtectionIK05 conforming to EN 50102
StandardsGB 14048.5 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
