Schneider Electric ZB6DF1 Harmony XB6 16mm White Rectangular Latching Push Button Head with Integral LED
- MPN: ZB6DF1
- PPN: SCH-ZB6DF1
CAD
$13.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

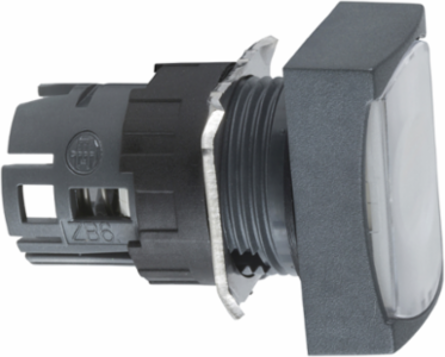

This Harmony ZB6DF1 is a white rectangular flush illuminated push button head, latching, for integral LED. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB6
- Type Of Operator
- latching
- Shape Of Signaling Unit Head
- rectangular
- Bezel Material
- plastic
- Product Compatibility
- integral LED
Mounting Diameter16 mm
Product Or Component Typehead for illuminated push-button
Sale Per Indivisible Quantity1
Operator Profilewhite flush, unmarked
Device Short NameZB6
Complementary
- Net Weight
- 0.016 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width
- 24 mm
Cad Overall Height18 mm
Mechanical Durability300000 cycles
Cad Overall Depth33 mm
Environment
- Product Certifications
- GOST || CCC || UL || CSA
- Standards
- EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || JIS C 852 || JIS C8201-1
- Vibration Resistance
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Nema Degree Of ProtectionNEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
