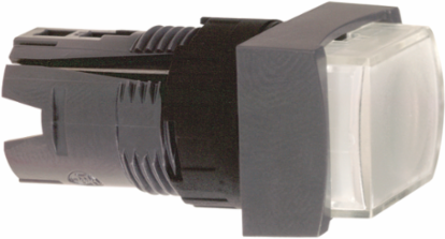

Schneider Electric ZB6DE1 Harmony XB6 Illuminated Push Button Head, 16mm Diameter, Spring Return, NEMA 13/IP65

MPN: ZB6DE1
PPN: SCH-ZB6DE1
UNSPSC: 39122216

$18.52

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony ZB6DE1 is a white rectangular projecting illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico

Weight	17 g

Physical Attributes

Cad Overall Depth	36 mm
Cad Overall Width	24 mm

Cad Overall Height	18 mm

Important Information Attributes

Vibration Resistance	+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase A4	0.0022230199, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0019165753, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	Out
Eoli Availability Display	Yes
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Bezel Material	plastic
Device Short Name	ZB6
Mounting Diameter	16 mm
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Shape Of Signaling Unit Head	rectangular
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.4 kg CO2 eq.
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Certificate Agency	GOST, UL, CSA, CCC
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.030843462
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.4 kg CO2 eq., 0.3797689913
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2403025EN
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Compatibility Code	ZB6
Electrical Shock Protection Class	class II conforming to IEC 61140
Operator Profile	white projecting, unmarked
Product Or Component Type	head for illuminated push-button
Range Of Product	Harmony XB6
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Type Of Operator	spring return
Data Source	extrapolated product
Customs Code	8538908180
Functional Unit Description	Harmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
Functional Unit Unit	Unit
Recyclability Potential In %	17

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 4X CSA C22.2 No 94NEMA 13 CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 4 CSA C22.2 No 94
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2403025EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	integral LED
Pep Code	ENVPEP2403025EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.4147520486
Environmental Disclosure	ENVPEP2403025EN
Ip Degree Of Protection	IP65 IEC 60529
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Verification Date	2023-10-01
Psr Version	PSR-0005-ed2-2016 03 29
