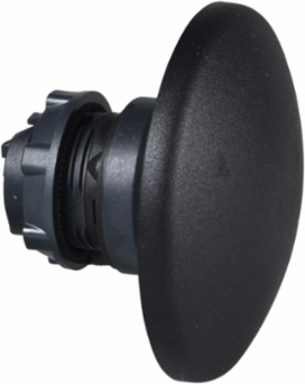

Schneider Electric ZB5AR216 Head for non illuminated push button, Harmony XB5, black mushroom 60mm, 22mm, spring return, unmarked

Head for non illuminated push button, Harmony XB5, black mushroom 60mm, 22mm, spring return, unmarked
  • MPN: ZB5AR216
  • PPN: SCH-ZB5AR216

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$41.00/ EA

Description

This black 60mm mushroom shaped push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Specifications

Environment

Product Certifications
GL || UL listed || DNV || LROS (Lloyds register of shipping) || CSA || BV
Ambient Air Temperature For Operation
-40-70 °C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Storage
-40-70 °C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsUL 508 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1710010EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Electrical Composition Code
C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C3 6 single front mounting || C4 6 single and double front mounting
Cad Overall Height
60 mm
Compatibility Code
ZB5
Cad Overall Width
60 mm
Net Weight0.048 kg
Mechanical Durability5000000 cycles
Station NameXALD 1 cut-out
Cad Overall Depth45 mm

Specifications

Range Of Product
Harmony XB5
Type Of Operator
spring return
Shape Of Signaling Unit Head
hemispherical
Device Presentation
basic element
Bezel Material
dark grey plastic
Device Short Name
ZB5
Mounting Diameter22 mm
Product Or Component Typehead for non-illuminated push-button
Head Typestandard
Sale Per Indivisible Quantity1
Operator Profileblack mushroom Ø 60 mm, unmarked
