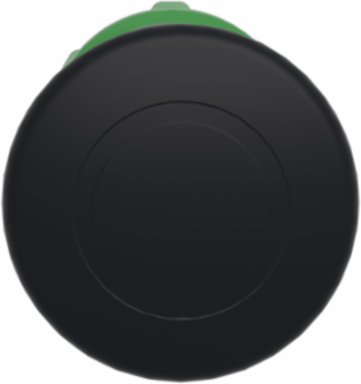

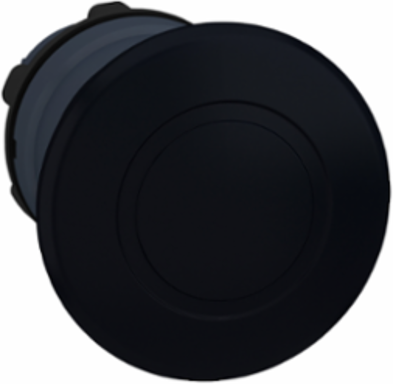

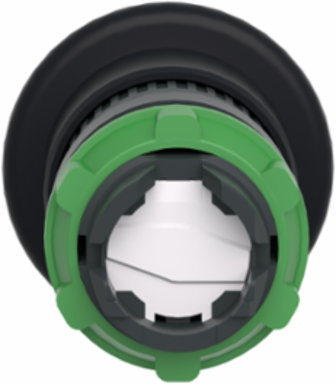

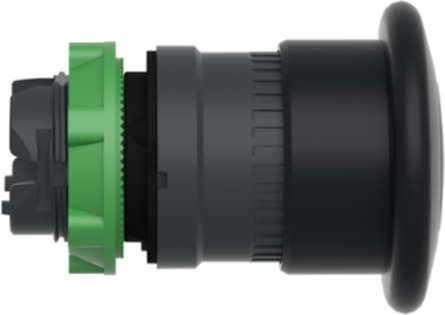

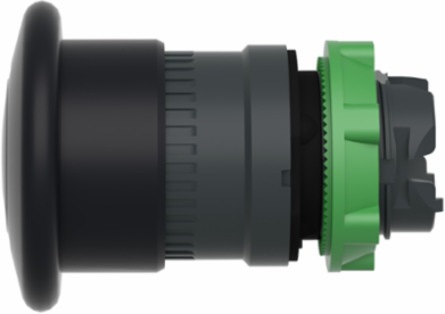

Schneider Electric ZB5AT2 Harmony XB5 Black 40mm Mushroom Pushbutton Head, IP66, Latching
Schneider Electric ZB5AT2 Harmony XB5 Black 40mm Mushroom Pushbutton Head, IP66, Latching
- MPN: ZB5AT2
- PPN: SCH-ZB5AT2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$43.05/ EA
Description
This Harmony XB5 40mm mushroom is black, operates with latched push-pull mechanism. It provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- BV || CSA || GL || UL listed || LROS (Lloyds register of shipping) || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsIEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
- Cad Overall Height
- 40 mm
- Compatibility Code
- ZB5
- Cad Overall Width
- 40 mm
Net Weight0.049 kg
Mechanical Durability500000 cycles
Station NameXALD 1 cut-out || XALK 1 cut-out
Cad Overall Depth56 mm
Specifications
- Reset
- push-pull
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for non-illuminated push-button
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- black mushroom Ø 40 mm, unmarked
Range Of ProductHarmony XB5
Type Of Operatorlatching
Shape Of Signaling Unit Headround
Device Presentationbasic element
Bezel Materialdark grey plastic
Device Short NameZB5
