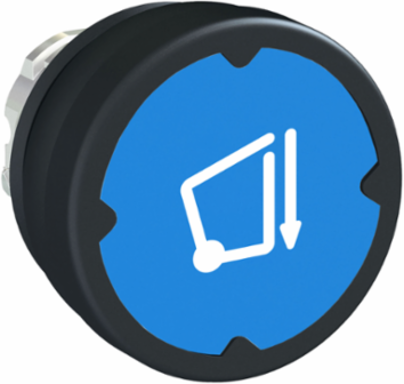

Schneider Electric ZB4BC68006 Harmony XB4 Push Button Head, 22 mm Standard, Blue, IP66, 10 Million Cycles
- MPN: ZB4BC68006
- PPN: SCH-ZB4BC68006
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered to withstand the rigors of demanding environments, this push button head from Schneider Electric's Harmony series presents a robust solution for automation and control applications. With a standard 22 mm design and a striking blue color, it not only enhances the visibility in industrial settings but also assures up to 10 million operational cycles, ensuring long-lasting performance. Rated at IP66 for exceptional ingress protection against water and dust, this component is ideal for use in harsh conditions, making your control systems both reliable and durable.
Documentation & Downloads
Specifications
Additional
- Shock Resistance
- 30 gn 18 ms half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 2-500 Hz IEC 60068-2-6
- NEMA Degree of Protection
- NEMA 4 UL 508, NEMA 12, NEMA 13
- Ambient Air Temperature for Operation
- -40 to 70 °C (-40 to 158 °F)
- Resistance to High Pressure Washer
- 90 Pa (0.01 psi) 82.5 °C (180 °F)
- Overall Width
- 37 mm
- Overall Height
- 18.5 mm
- Head Type
- Standard
- Operator Profile
- Blue flush, type H006 white
- Shape
- Round
- Marking Type
- Type H006
- Standards
- CSA C22.2, IEC 60947-5-1, IEC 60947-1, UL 508
- RoHS Compliance
- Pro-active compliance (Product out of EU RoHS legal scope), Exemption: Yes
- Mercury Free
- Yes
Mechanical Durability10000000 cycles
IP Degree of ProtectionIP66, IP67, IP69, IP69K IEC 60529
Electrical Shock Protection ClassClass I IEC 61140
Ambient Air Temperature for Storage-40 to 85 °C (-40 to 185 °F)
Mounting Diameter22 mm (0.87 in)
Overall Depth37 mm
Weight0.036 kg (0.08 lb)
Operator TypeSpring return
MaterialChromium plated metal
ColorBlue
Marking ColorWhite
Product CertificationsUL, CE, CSA, RoHS
Toxic Heavy Metal FreeYes
Country of OriginFrance
