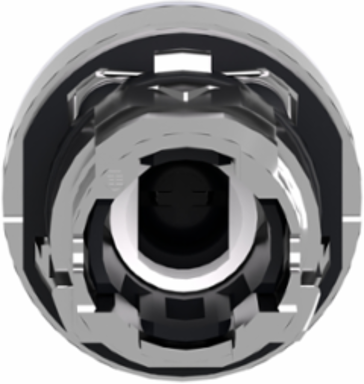

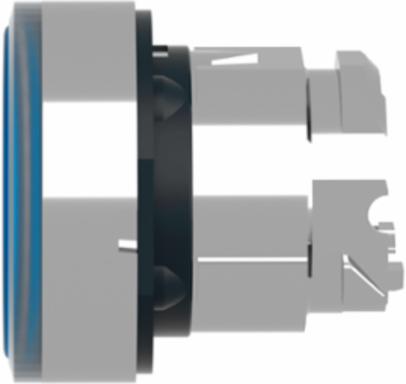

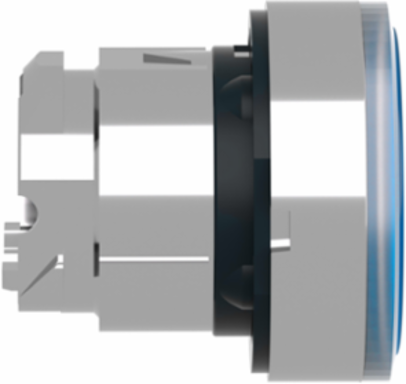

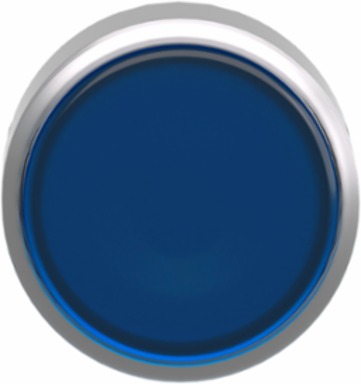

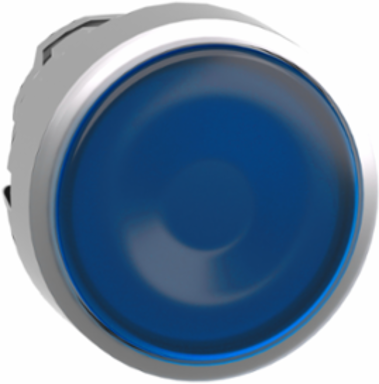

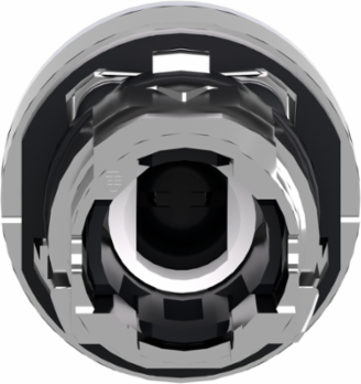

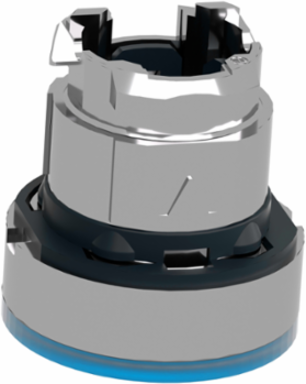

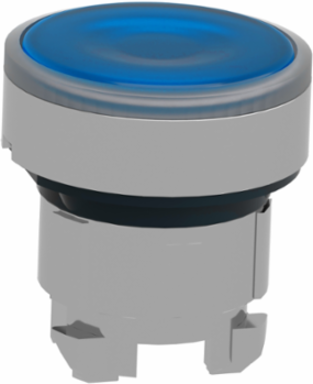

Schneider Electric ZB4BW363 Harmony XB4 Illuminated Push Button Head, 22mm, Blue Flush, IP66
- MPN: ZB4BW363
- PPN: SCH-ZB4BW363
CAD
$13.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, plain lens illuminated flush blue button head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Features
- The Schneider Electric ZB4BW363 is a 22mm illuminated push button head from the Harmony XB4 metal range. It features a "flush" profile and a Blue lens. In Canadian industrial panels, blue is most commonly used for "Reset" functions (such as resetting a tripped motor starter or a safety relay) or for specific process commands that require visual confirmation that the button is active.
- Being part of the XB4 family, this head features a rugged chromium-plated metal bezel. This makes it significantly more durable than the plastic XB5 equivalents. It is designed to withstand physical impacts, chemical washdowns, and the extreme temperatures found in Canadian environments like oil refineries, mining sites, and outdoor pumping stations.
- The ZB4BW363 is a momentary operator. This means it only stays "actuated" as long as your finger is pressing it. When released, it springs back to its original position. This is the standard requirement for "Start," "Reset," or "Inching" commands where you only want to send a brief signal to a PLC or a contactor coil.
- This button head is built for the harshest conditions. With NEMA 4X and IP69K ratings, it is completely dust-tight and can withstand high-pressure, high-temperature steam cleaning. This makes it a go-to choice for Canadian food and beverage processing plants where strict sanitation and frequent washdowns are mandatory.
- The ZB4BW363 is the head only. To make it a functional switch, you must pair it with: Mounting Collar: (e.g., ZB4BZ009) Light Block: (e.g., ZBVG6 for 120V) Contact Block: (e.g., ZBE101 for Normally Open) This modularity allows you to mix and match voltages and contact configurations without replacing the entire button.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Cad Overall Depth
- 30 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Cap Operator Or Lens Colorblue
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Electrical Composition Code
- M1 6 single front mounting integral LEDM2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED
- Certificate Agency
- CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0433155945, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.1956766082
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 37 %
- Device Short Name
- ZB4
- Group Of Product
- flush push integral LED
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Marking
- unmarked
- Mounting Diameter
- 22.5 mm
- Operator Profile
- blue flush, unmarked
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Packaging
- Yes
- Type Of Operator
- spring return
- Cap Operator Or Lens Color
- blue
- Pep Code
- ENVPEP1808008EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Recyclability Potential In %
- 75
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizableno, 1
X C Productflush push integral LED
Carbon Footprint Of The Distribution Phase [A4]0.0041589864, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0038224561
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Weee ApplicabilityComponent
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1808008EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content21 %
Compatibility CodeZB4
Gcr BridgeZB4BWCUST04
Head Typestandard
Main Groupillum push-button
Mechanical Durability10000000 cycles
Operator Additional Informationwith plain lens
Overvoltage Categoryclass I conforming to IEC 60536
Product Or Component Typehead for illuminated push-button
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Operator Add Informationwith plain lens
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colourblue
Package Weight(Lbs)27.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level21 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.2469736452
Environmental DisclosureENVPEP1808008EN
Packaging Made With Recycled CardboardYes
Product Compatibilityuniversal LED
Pep CodeENVPEP1808008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
