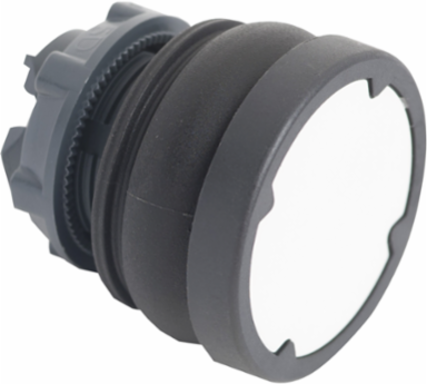

Schneider Electric ZB5AC180 Harmony XB5 Flush Push Button Head, White, 22 mm, IP66, -40 to 70 °C
Schneider Electric ZB5AC180 Harmony XB5 Flush Push Button Head, White, 22 mm, IP66, -40 to 70 °C
- MPN: ZB5AC180
- PPN: SCH-ZB5AC180
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$68.34/ EA
Description
This Harmony XB5, flush white button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- CSA || UL || CE
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- UL 508 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2
- Electrical Shock Protection Class
- class II IEC 61140
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Ik Degree Of ProtectionIK03 conforming to IEC 62262
Ambient Air Temperature For Storage-40-85 °C
Nema Degree Of ProtectionNEMA 4 UL 508 || NEMA 13 || NEMA 12
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP69K || IP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Operator Profile
- white flush, unmarked
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Cad Overall Depth
- 37 mm
- Cad Overall Height
- 18.5 mm
- Resistance To High Pressure Washer
- 90 Pa 82.5 °C
Mechanical Durability10000000 cycles
Cad Overall Width37 mm
Net Weight0.024 kg
Device Presentationbasic element
Specifications
- Sale Per Indivisible Quantity
- 1
- Range Of Product
- Harmony XB5
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for push-button
- Device Short Name
- ZB5
Operator Additional Informationvertical mounting || horizontal mounting
Bezel Materialblack plastic
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Head Typestandard
