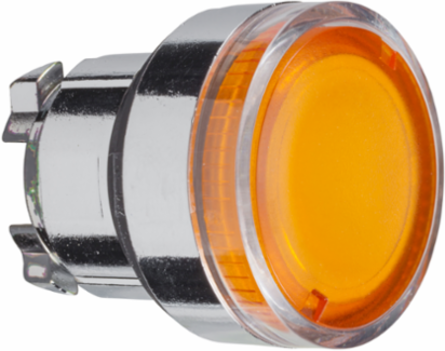

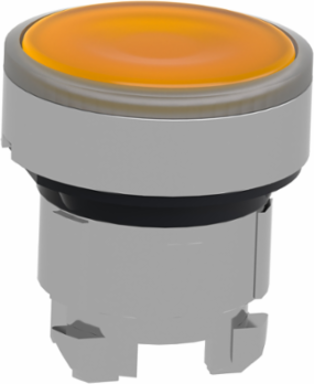

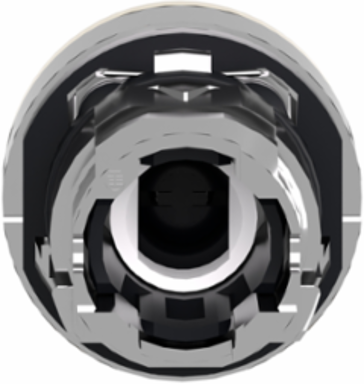

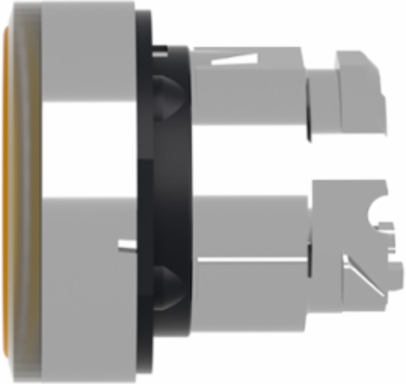

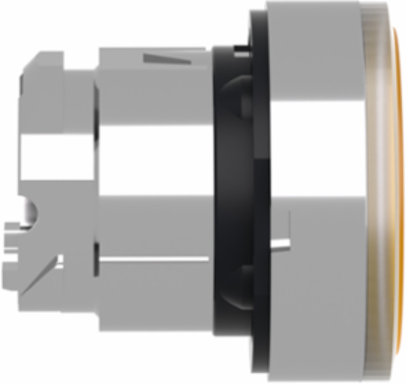

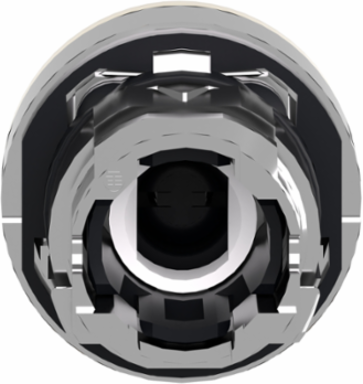

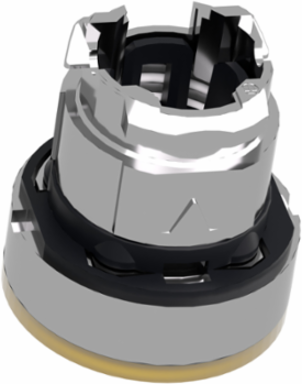

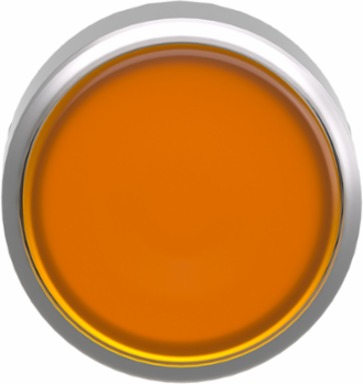

Schneider Electric ZB4BW35 Harmony XB4 22mm Orange Metal Flush Push Button Head, IP66 Protection
- MPN: ZB4BW35
- PPN: SCH-ZB4BW35
CAD
$13.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, plain lens illuminated flush orange button head operates with a spring return / impulse mechanism. This illuminated button head for BA9s Integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Features
- Engineered with a heavy-duty metal bezel and designed for standard 22mm cutouts, this Harmony XB4 illuminated push-button head guarantees exceptional durability in high-traffic manufacturing facilities. It actively resists repeated mechanical impact, harsh chemical exposure, and machine vibration, eliminating the need for frequent replacements and keeping your automated control panels completely secure.
- Built to survive the most extreme environmental conditions, this operator head features a watertight, dust-tight seal that boasts strict IP66, IP67, and IP69K ratings. This uncompromising ingress protection means the button will not fail during rigorous industrial cleaning or outdoor exposure, ensuring uninterrupted reliable operation in food and beverage processing plants, wastewater facilities, and heavy-duty machining centers.
- Featuring a vibrant orange plain lens designed specifically for high-luminance universal LED blocks, this momentary (spring return) button provides unmistakable visual indication for "warning" or "intervention required" statuses on your machinery. The low-profile flush design prevents dangerous accidental actuation from bumped elbows or dropped tools, protecting your factory personnel and reducing costly equipment downtime caused by false triggers.
- As a core component of the highly versatile Schneider Electric Harmony XB4 series, this 22mm actuator head quickly snaps onto standard mounting collars, contact blocks, and light modules without requiring specialized tools. This intuitive, modular architecture drastically cuts down assembly time for custom panel builders and allows maintenance engineers to perform rapid, stress-free component retrofits directly on the factory floor.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, France, United States |
|---|

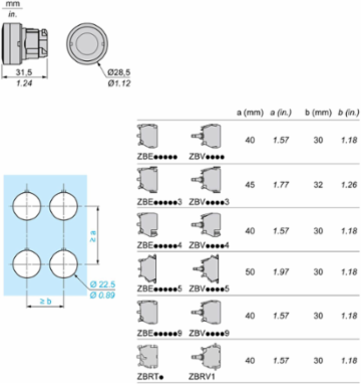

Physical Attributes
| Cad Overall Depth | 32 mm |
|---|---|
| Cad Overall Width | 29 mm |
| Cad Overall Height | 29 mm |
|---|---|
| Cap Operator Or Lens Color | orange |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | chromium plated metal, chromium plated metal |
| Electrical Composition Code | M7 6 single front mounting BA 9sM8 6 single and double front mounting BA 9s, M9 2 single front mounting BA 9s and transformer |
| Certificate Agency | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0449815789 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.2032026316 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 37 % |
| Device Short Name | ZB4 |
| Head Type | standard |
| Marking | unmarked |
| Mounting Diameter | 22.5 mm |
| Operator Profile | orange flush, unmarked |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | No |
| Type Of Operator | spring return |
| Cap Operator Or Lens Color | orange |
| Pep Code | ENVPEP1808008EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 75 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -0.0318 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | 0, no |
| X C Product | flush push BA9s |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0043189474, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0039694737, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Applicability | Component |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1808008EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 21 % |
| Compatibility Code | ZB4 |
| Group Of Product | flush push BA9s |
| Main Group | illum push-button |
| Mechanical Durability | 10000000 cycles |
| Operator Additional Information | with plain lens |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Or Component Type | head for illuminated push-button |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Operator Add Information | with plain lens |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Cap/Operator Or Lens Colour | orange |
| Package Weight(Lbs) | 27.0 g |
| Warranty (In Months) | 18 |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Recycled Metal Content At Cr Level | 21 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.2564726316 |
| Environmental Disclosure | ENVPEP1808008EN |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | BA 9s |
| Pep Code | ENVPEP1808008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | head for illuminated push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000221 |
|---|
| ETIM 9 | EC000221 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic sub-assemblies |
|---|
