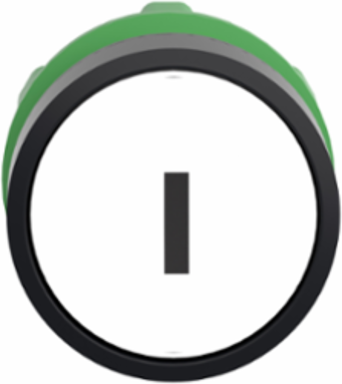

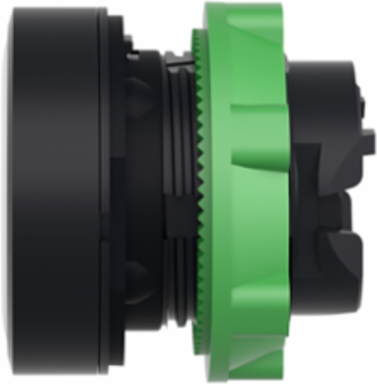

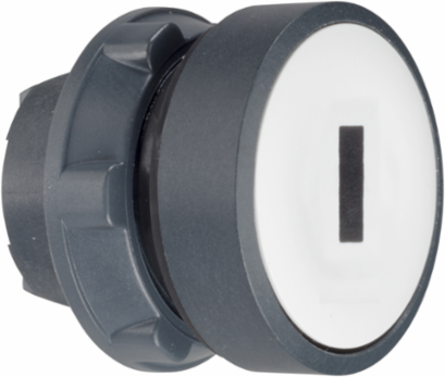

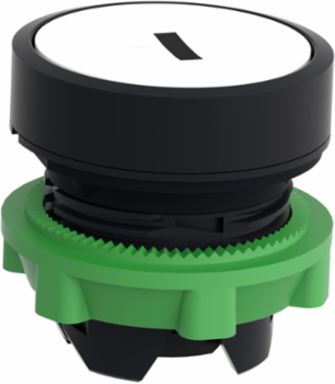

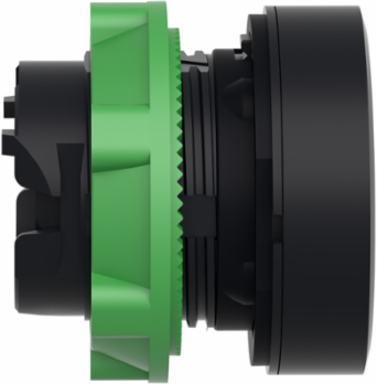

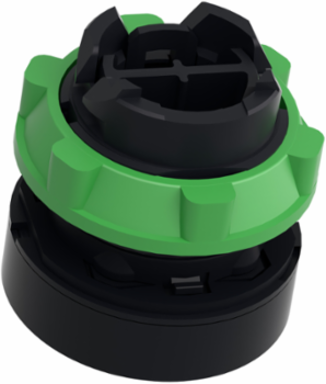

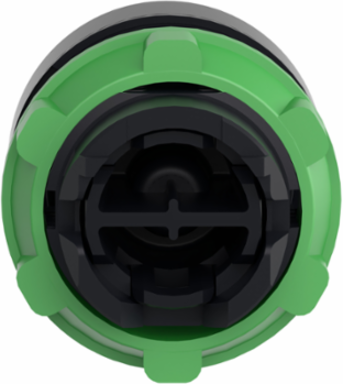

Schneider Electric ZB5AA131 Harmony XB5 Non-Illuminated Push Button Head 22mm, IP66, Spring Return
- MPN: ZB5AA131
- PPN: SCH-ZB5AA131
CAD
$20.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This white flush button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- white flush, I black)
Mounting Diameter22 mm
Product Or Component Typehead for non-illuminated push-button
Head Typestandard
Bezel Materialdark grey plastic
Device Short NameZB5
Complementary
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting

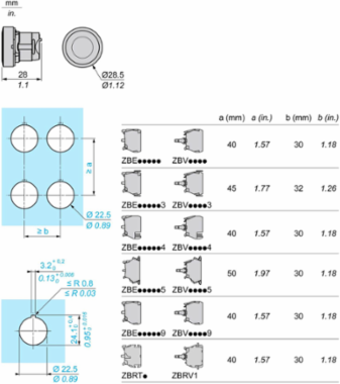

- Cad Overall Height
- 29 mm
- Mechanical Durability
- 10000000 cycles
- Cad Overall Width
- 29 mm
Net Weight0.018 kg
Device Presentationbasic element
Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
Cad Overall Depth28 mm
Environment
- Product Certifications
- BV || GL || UL listed || LROS (Lloyds register of shipping) || DNV || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsUL 508 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
