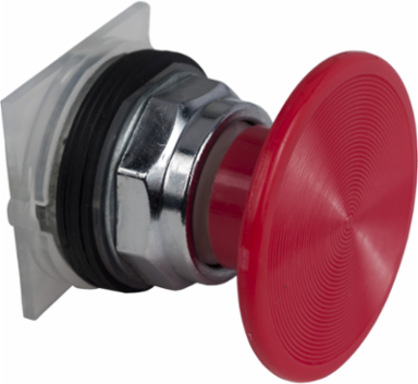

Schneider Electric 9001KR25R Harmony 9001K Mushroom Push Button Head 57mm Red, 30mm Mounting Diameter
Schneider Electric 9001KR25R Harmony 9001K Mushroom Push Button Head 57mm Red, 30mm Mounting Diameter
- MPN: 9001KR25R
- UPC: 785901173922
- PPN: SCH-9001KR25R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$104.51/ EA
Description
This Harmony 9001K, modular red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape with 57mm mushroom head. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Specifications
- Operator Additional Information
- screw-on plastic with set screw
- Operator Profile
- red flush
- Device Short Name
- 9001K
Range Of ProductHarmony 9001K
Product Or Component Typehead for push-button
Complementary
- Contacts Type And Composition
- without contact block
- Mounting Diameter
- 30 mm
- Operator Profile
- mushroom Ø 57 mm
- Cap/Operator Or Lens Colour
- red
Bezel Materialmetal
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Downloads
