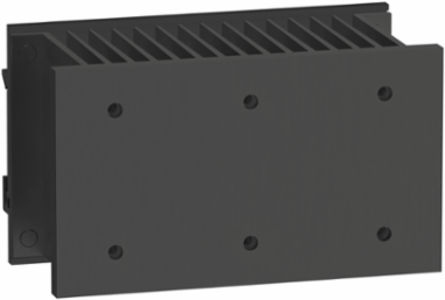

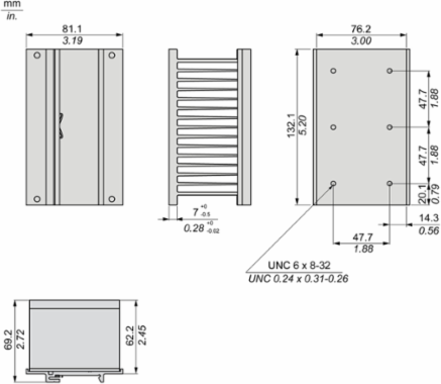

Schneider Electric SSRHD10 Harmony Heat Sink, DIN Rail Mount, 76.2 mm Width, 132.1 mm Height, 1 C/W Thermal Resistance
- MPN: SSRHD10
- PPN: SCH-SSRHD10
CAD
$81.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony Heat Sink, DIN Rail Mount, 76.2 mm Width, 132.1 mm Height, 1 C/W Thermal Resistance
Features
- Featuring an optimized thermal resistance rating of 1 C/W, this extruded aluminum heat sink rapidly dissipates damaging heat away from your solid-state relays (SSRs). By keeping switching temperatures low, it prevents premature component failure, mitigates thermal runaway risks, and ensures maximum current-carrying capacity during demanding, round-the-clock industrial cycles.
- Engineered specifically for Schneider Electric's Harmony (formerly Zelio) solid-state relay series, this compact heat sink features a pre-drilled 6-hole multi-position pattern for flawless physical alignment. Its narrow 2.37-inch (60.2 mm) profile eliminates physical compatibility guesswork, allowing you to maximize relay density without crowding adjacent automated control components.
- Equipped with an integrated heavy-duty mounting foot, this versatile unit snaps directly onto standard 35mm DIN rails or mounts flat to a backpanel. This dual-purpose mounting flexibility eliminates the need for auxiliary adapter brackets, drastically reducing installation labor and assembly times in dense electrical enclosures.
- Built from high-grade, corrosion-resistant anodized aluminum, this rugged heat sink is built to survive industrial environments prone to mechanical shock, vibration, and ambient dust. It delivers maintenance-free passive cooling reliability, eliminating the mechanical failure points and downtime associated with forced-air fan units.
- his genuine Schneider Electric accessory is fully RoHS-3 compliant, and REACH unaffected, aligning perfectly with global environmental mandates and strict corporate safety standards.
