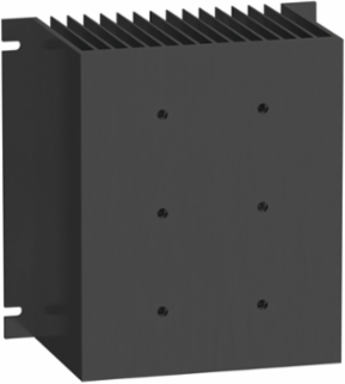

Schneider Electric SSRHP05 Harmony Solid State Relay Heat Sink, 152.4x88.9x152.4mm, 0.5°C/W

Harmony Solid State Relay Heat Sink, 152.4x88.9x152.4mm, 0.5°C/W
  • MPN: SSRHP05
  • PPN: SCH-SSRHP05

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$110.09/ EA

    Description

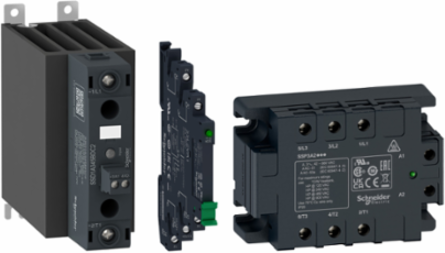

    This product is part of the Harmony Solid State Relays, an offer of protection accessories for panel mount solid state relays. This heat sink is suitable for Harmony solid state relays. It features 0.5°C/W thermal resistance, 4406cm² surface and useful surface. It is made of aluminum with black anodized finish. Its dimensions are 152.4mm (width) x 88.9mm (depth) x 152.4mm (height). It weighs 1.44kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This heat sink is compatible with 1 solid state relay on panel. It supports panel mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.

    Specifications

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1308009
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Complementary

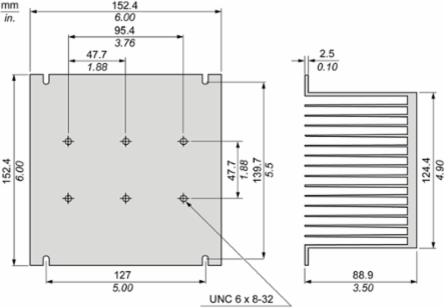

    Height
    152.4 mm
    Sale Per Indivisible Quantity
    1
    Mounting Support
    panel
    Surface And Useful Surface
    4406 cm²
    Width
    152.4 mm
    Material
    aluminium
    Tightening Torque
    1.7-2.2 N.m
    Product Compatibility1 solid state relay SSR panel
    Number Of Mounting Holes6 UNC 8-32
    Surface Finishblack anodized
    Thermal Resitance0.5 °C/W
    Depth88.9 mm
    Net Weight1.440 kg

    Specifications

    Range Of Product
    Harmony Solid State Relays
    Product Or Component Typeheat sink
