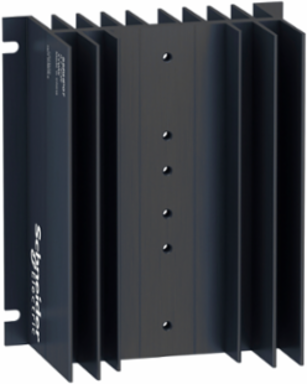

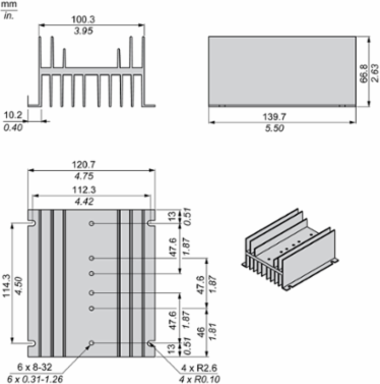

Schneider Electric SSRHP07 Harmony Heat Sink Panel Mount 0.7 C/W Thermal Resistance, 120.7mm Height
- MPN: SSRHP07
- PPN: SCH-SSRHP07
CAD
$47.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony Heat Sink Panel Mount 0.7 C/W Thermal Resistance, 120.7mm Height
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|
| Depth | 66.8 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Support | panel, panel |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Material | aluminium |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony Solid State Relays |
| Sale Per Indivisible Quantity | 1 |
| Surface Finish | black anodized |
| Thermal Resistance | 0.7 °C/W |
| Thermal Resistance Symb | 0.7 °C/W |
| Height Nominal | 120.7 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908160 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Number Of Mounting Holes | 6 UNC 8-32 |
| Product Or Component Type | heat sink |
| Returnability | Yes |
| Surface And Useful Surface | 1640 cm² |
| Sustainable Packaging | Yes |
| Tightening Torque | 1.7-2.2 N.m |
| Pep Code | ENVPEP1308009 |
| Width Nominal | 139.7 mm |
| Package Weight(Lbs) | 674.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1308009 |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | 1 solid state relay SSR panel |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1308009 |
General Attributes
| Product Or Component Type | heat sink |
|---|
| Range Of Product | Harmony Solid State Relays |
|---|
ETIM
| ETIM 8 | EC002586 |
|---|
| ETIM 9 | EC002586 |
|---|
