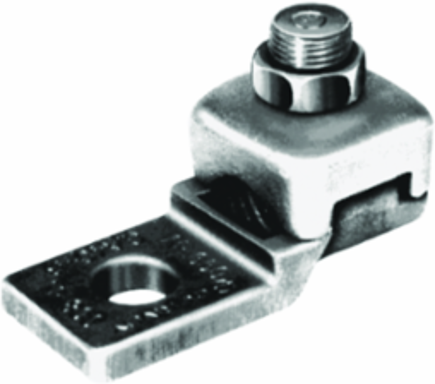

Burndy QA4C2NTN Heavy Duty Compact Copper Mechanical Terminal, 1 Inch Width, 2 Pad Holes, 8-4 AWG
- MPN: QA4C2NTN
- UPC: 781810373231
- PPN: BUR-10089383
CAD
$847.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Compact Copper Mechanical Terminal, 1 Inch Width, 2 Pad Holes, 8-4 AWG
Specifications
Key Specifications
| Connector Type | Terminal |
|---|---|
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Tin - Electro Plated |
| Type | Bolted Lugs & Terminals |
| Dimension - B Length fraction | 3/4 in |
| Dimension - Cross Flats inch | 0.56 in |
| Dimension - Height fraction | 18/25 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 102 mm |
| Dimension - N inch | 0.62 in |
| Dimension - Width inch | 1.00 in |
| Conductor - Copper Str Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Certification - UL Listed Direct Burial | No |
| Standards - RoHS Compliance Status | CM |
| Material | Copper |
|---|---|
| Physical Attribute - Number of Screws | 1 |
| Plated | Y |
| Trade Name | QIKLUG™ |
| UPC | 781810373231 |
| Dimension - B Length inch | 0.75 in |
| Dimension - D inch | 3.00 in |
| Dimension - Height inch | 0.72 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 4.00 in |
| Dimension - Pad Width inch | 1.00 in |
| Dimension - Width mm | 25 mm |
| Conductor - Copper Str Size Range | 8 AWG-4 AWG |
| Industry Standard(s) | UL468A-468B |
