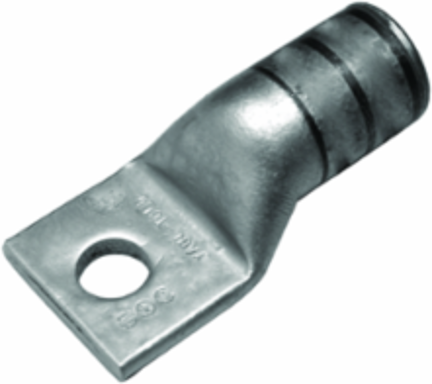

Burndy YAG4CLTC516FX Copper Hylug Terminal, 4 AWG, 5/16 Inch Stud, Tin Plated, 35 kV
- MPN: YAG4CLTC516FX
- UPC: 781810129128
- PPN: BUR-25003517
CAD
$10.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug, 1 Hole, #4 Flex, #4 AWG,5/16 Stud
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1/2 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - Hole Size mm
- 8 mm
- Dimension - Length Overall inch
- 1.55 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Strip Length inch
- 1/2
- Dimension - Z inch
- 0.36 in
Dimension - B Length inch0.50 in
Dimension - Hole Size inch0.33 in
Dimension - L Length Overall mm39 mm
Dimension - N inch0.34 in
Dimension - Pad Width inch.55 in
Dimension - Stud Size inch5/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 4 (105/#24) DLO
- Conductor - Copper Flex H Size
- 4 AWG
- Conductor - Copper Flex K Size
- 4 AWG
- Conductor - Copper Str Navy Size
- 40 (19) Navy;50 (19) Navy
- Conductor - CopperWeld C Solid Size
- 4 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size4 AWG
Conductor - Copper Flex I Size4 AWG
Conductor - Copper Flex M Size4 AWG
Conductor - Copper Str Size4 AWG
Conductor - CopperWeld Str Size4 AWG
General
- Color Code
- Gray
- Die Index
- 8
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818101291288
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810129128
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
