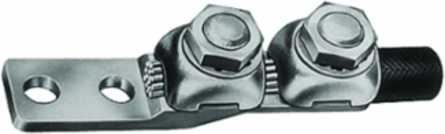

Burndy QQA1C Heavy Duty Copper Terminal 1 Hole 4 AWG, 1/4 Inch Stud, 2 Screws, 2-13/16 Inch Length
- MPN: QQA1C
- UPC: 781810006085
- PPN: BUR-358580
CAD
$95.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Terminal, Heavy Duty, 1 Hole, 4-1 AWG (Str), 1/4" Stud, 2 Screws.
Features

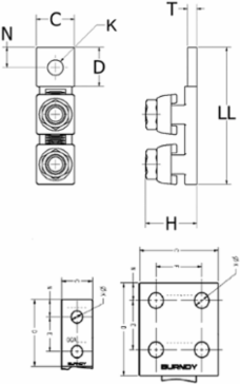

- Features: Type QQA Heavy Duty, High Copper Alloy Terminal For Joining Cable To Equipment Pads Or Bar, Twin Clamping Elements Secure Joint Vibration And Flexing, One-Wrench Installation, Dimension T: 7/32 IN, Dimension K: 9/32 IN, Stud/bolt Hole Size: 1/4 IN, Dimension N: 11/32 IN, Number Of Clamping Elements: 2, Dimension D: 3/4 IN, Conductor Type: Run: Commercial Stranded Copper, Navy Copper, Tongue Width: 5/8 IN, Installation Torque: 150 IN-LB, Height: 1 IN, Length: 2-13/16 IN
Documentation & Downloads
Specifications
Key Specifications
| Application | For Joining Copper Cable To Equipment Pads Or Bars |
|---|---|
| Installation Torque Recommended in-lb | 150 LBS/in |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Trade Name | QIKLUG™ |
| UPC | 781810006085 |
| Dimension - Height fraction | 1 in |
| Dimension - Hole Size inch | 0.28 in |
| Dimension - L Length Overall mm | 71 mm |
| Dimension - N inch | 0.34 in |
| Conductor - Copper Str Navy Size | 40 (19) Navy;50 (19) Navy;60 (37) Navy;75 (37) Navy |
| Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG |
| Certification - CSA Approved | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | EX |
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Physical Attribute - Number of Screws | 2 |
| Plated | N |
| Sub Brand | QIKLUG |
| Type | Bolted Lugs & Terminals |
| Dimension - D inch | 0.75 in |
| Dimension - Height inch | 1.00 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 2.81 in |
| Dimension - Pad Width inch | 0.63 in |
| Conductor - Copper Str Navy Size Range | 40 (19) Navy-75 (37) Navy |
| Conductor - Copper Str Size Range | 4 AWG-1 AWG |
| Certification - ETL | No |
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
