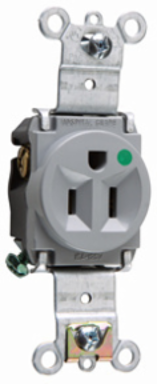

Pass & Seymour 8201GRY Heavy Duty Hospital Grade Single Receptacle 15A, 125V, Gray, 3.68 Inch Height
Pass & Seymour 8201GRY Heavy Duty Hospital Grade Single Receptacle 15A, 125V, Gray, 3.68 Inch Height
- MPN: 8201GRY
- UPC: 785007820324
- PPN: P-S-8201GRY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$45.56/ EA
Description
Heavy-Duty Hospital Grade Single Receptacle, Back and Side-Wire, 15A 125V
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- One-piece brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- Internal screw-pressure-plate back wire capable of accepting #14 : #10 AWG solid or stranded copper or copper-clad wire.
- Terminal compartments isolated from each other for positive conductor containment.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Specifications
Specifications
- Depth
- 1.093 in
- Color
- Gray
- Product Line
- Pass & Seymour
- Special Features
- Heavy-duty, zinc-plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 – #10 AWG solid or stranded copper or copper-clad wire. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
- Amperage
- 15.0 A
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Outlet Type
- Hospital Grade
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-15R
- Connection Location
- Back and Side
- Dielectric Strength
- Withstands 2000V minimum
- Environmental Conditions
- Flammability: UL94 V2
Height3.68 in
Width1.32 in
Country of OriginMexico
StandardUL498
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles1.0
Number of PolesDouble Pole
Application SectorHealthcare
StandardcUL/CSA C22.2 No. 42
Warranty Type1-Year Limited Warranty
Wire Connection TypeInternal Pressure Plates
FeaturesSingle Piece Plated Steel Mounting Strap
