Hubbell Wiring Device-Kellems SAA12 Industrial Grade Liquid Tight Adapter 1/2 Inch NPT for 16 & 20A
- MPN: SAA12
- UPC: 783585887005
- PPN: HBL-SAA12
- UNSPSC: 39121402
CAD
$113.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

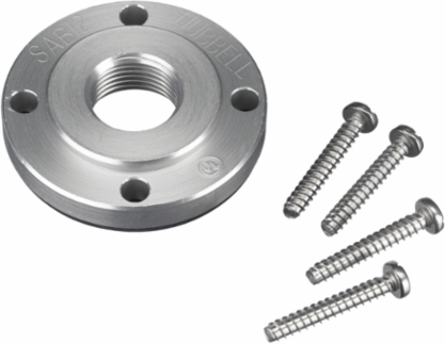

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Liquid Tight Adapter, For 16 and 20A- 3 and 4-Wire, 1/2"NPT, Furnished with Hardware, Machined Aluminum
Features
- Industrial Grade
- Accessories
- Liquid Tight Adapter
- 1/2" NPT
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Dual-Certified IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Width
- 3.600 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Color
- Aluminum
- Environmental Conditions
- Watertight
- Special Features
- 1/2" NPT
- Type
- Liquidtight Adapter
- Display Size
- Standard Sized
- Style
- 1/2" NPT
- Description - Invoice
- PS,IEC/INS,L/T ADAPT,1/2" HUB,16/20A 3/4
- Harmonization Code
- 7616999999
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Series
- Accessories
- BOX SIZE
- 4.300x4.800x4.900 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585887005
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
General Literature Asset 2 Display TextPulp & Paper Solutions
Country of OriginMexico
Industry Standard(s)UL Listed
Application16 and 20 Amp, 3 and 4 Wire
Cord TypeAll Portable
NEMA RatingNon-NEMA
StandardUL Listed
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.75 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight7.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
