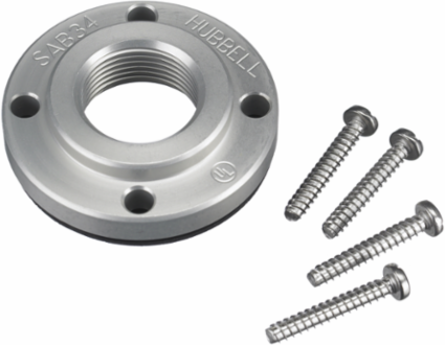

Hubbell Wiring Device-Kellems SAA34 Liquidtight Adapter for 16 and 20A 3 and 4-Wire, 3/4 Inch NPT, Aluminum
- MPN: SAA34
- UPC: 783585887159
- PPN: HBL-SAA34
- UNSPSC: 39121402
CAD
$177.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Liquid Tight Adapter, For 16 and 20A 3 and 4-Wire, 3/4" NPT, Furnished with Hardware, Machined Aluminum
Features
- Industrial Grade
- Accessories
- Liquid Tight Adapter
- 3/4" NPT
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Industry Standard(s)
- UL Listed
- Application
- 16 and 20 Amp, 3 and 4 Wire
- Cord Type
- All Portable
- NEMA Rating
- Non-NEMA
- Standard
- UL Listed
- General Literature Asset 1 Display Text
- Dual-Certified IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized
- Style
- 3/4" NPT
- Description - Invoice
- PS, IEC/INS, KIT, L/T ADAPT, 3/4" HUB
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Series
- Accessories
- BOX SIZE
- 4.680x4.620x4.310 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585887159
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323112
Width4.000 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
ColorAluminum
Environmental ConditionsWatertight
Special Features3/4" NPT
TypeLiquidtight Adapter
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight17.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
