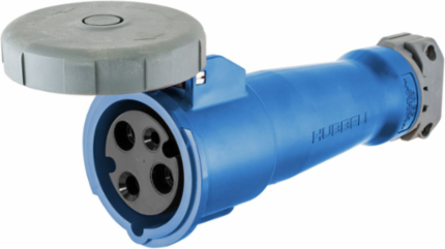

Hubbell Wiring Device-Kellems HBL320C6W Industrial Grade Watertight Female IEC Connector, 20A 250V AC, 2-Pole 3-Wire Grounding
- MPN: HBL320C6W
- UPC: 783585403335
- PPN: HBL-HBL320C6W
- UNSPSC: 39121421
CAD
$416.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 20A 250V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Blue, Watertight
Features
- Insulated Non-Metallic housing
- Color coded housings by voltage for easy identification
- Corrosion-resistant self-closing gasketed cover
- Watertight
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Dual-Certified IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- IEC Pin & Sleeve Devices
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Amperage Rating
- 20 A
- Color
- Blue
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Poles
- 2-Pole
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Type
- Watertight Connector Body
- Voltage Rating Description
- 250 VAC
- Display Size
- Standard
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A180
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585403334
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display TextHubbell Marine Full Line Catalog
Country of OriginUnited States
Width4.500 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Connections
Conductor Range#14 AWG to #10 AWG
InsulationInsulated Body
Number of Conductors3-Wire Grounding
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating250 VAC
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Poles2-Pole
StyleStandard Service
Description - InvoicePS, IEC, CONN, 2P3W, 20A 250V, W/T
Harmonization Code8536690200
MSDS FlagNo
Material - Mounting HardwareCord Mounted
SeriesHBL Heavy Duty
BOX SIZE9.900x22.600x9.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585403335
Case Weight12.000 lb.
Lowest Level UOMEach
Pallet Height39.600 in
Pallet Weight384.000 lb.
NAICS Code335931A104
