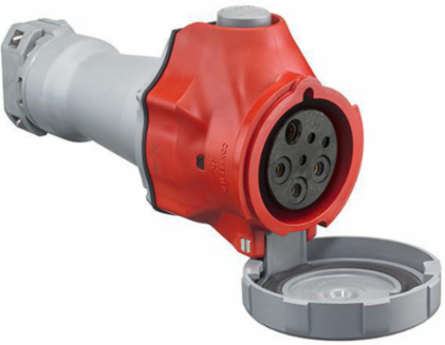

Hubbell Wiring Device-Kellems HBLS460C7WC Heavy Duty 30A 600V Watertight Female Connector, 3-Pole 4-Wire, IP67
- MPN: HBLS460C7WC
- UPC: 783585679914
- PPN: HBL-HBLS460C7WC
- UNSPSC: 39121404
CAD
$2030.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, Pin and Sleeve Devices, Switched, IEC 309, Female Connector, 60A 600V Max, 3- Pole 4-Wire Grounding, 3 Control Contacts, NEMA 4X/IP69, Watertight, Red
Features
- Switched
- IEC 309
- Female Connector
- 60A 600V Max
- 3- Pole 4-Wire Grounding
- Control Contacts
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.600 in
- Ingress Protection
- 4X/IP69k
- Color
- Red
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Standard
- CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146033
- Voltage Rating Description
- 600 VAC Max
- Connectivity
- Pressure Terminal Screws
- Dielectric Strength
- Withstands 3000V Minimum in
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Cord Mounted
- Series
- Advantage® Series
- BOX SIZE
- (in)
Current / Amperage Rating30 A
Industry Standard(s)CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146033
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1.;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
InsulationInsulated Body
Number of Poles3-Pole
Special FeaturesControl Contacts
TypeWatertight Connector
General Literature Asset 1 Display TextIHubbell-PRO EC pin & sleeve devices
Cord TypeAll Portable
Display SizeStandard Sized Product
Number Of Poles3-Pole
StyleIP69k NEMA 4X
Class CodeA12
Harmonization Code8536694020
Sub Class CodeA12A180
MaterialThermoplastic
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585679914
