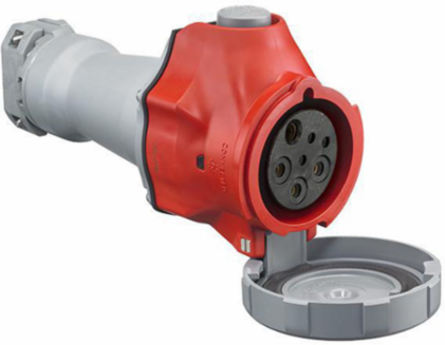

Hubbell Wiring Device-Kellems HBLS430C7WC Heavy Duty IEC 309 Female Connector, 30A 600V Max, 3-Pole, 4-Wire, Watertight, Red
- MPN: HBLS430C7WC
- UPC: 783585679877
- PPN: HBL-HBLS430C7WC
- UNSPSC: 39121404
CAD
$1221.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, Pin and Sleeve Devices, Switched, IEC 309, Female Connector, 30A 600V Max, 3- Pole 4-Wire Grounding, 3 Control Contacts, NEMA 4X/IP69, Watertight, Red
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
- Control Contacts
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.100 in
- Ingress Protection
- 4X/IP69k
- Color
- Red
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Standard
- CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146033
- Voltage Rating Description
- 600 VAC Max
- Connectivity
- Pressure Terminal Screws
- Dielectric Strength
- Withstands 3000V Minimum in
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Cord Mounted
- Series
- Advantage® Series
- BOX SIZE
- 10.900x23.400x10.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585679877
- Case Weight
- 29.950 lb.
- Pallet Height
- 43.600 in
- Pallet Weight
- 838.600 lb.
- NAICS Code
- 335931A104
Current / Amperage Rating30 A
Industry Standard(s)CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146033
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1.;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
InsulationInsulated Body
Number of Poles3-Pole
Special FeaturesControl Contacts
TypeWatertight Connector
General Literature Asset 1 Display TextIHubbell-PRO EC pin & sleeve devices
Cord TypeAll Portable
Display SizeStandard Sized Product
Number Of Poles3-Pole
StyleIP69k NEMA 4X
Class CodeA12
Harmonization Code8536694020
Sub Class CodeA12A180
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack29.950 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Pallet - GTIN - Package70783585679876
Pallet Length48.000 in
Pallet Width40.000 in
