Hubbell Wiring Device-Kellems HBLS530C7W Watertight IEC Pin & Sleeve Female Connector, 30A, 4-Pole, 5-Wire

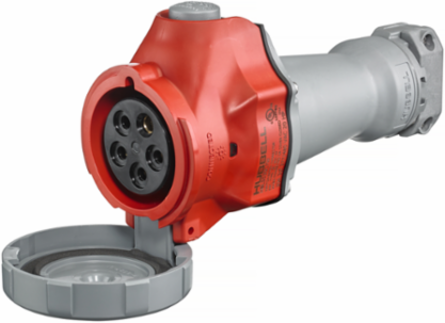

Watertight IEC Pin & Sleeve Female Connector, 30A, 4-Pole, 5-Wire - https://media.province-electric.com/325/synd_hubbell/medium/a8ae485a27b77ec2a6b0f168e382cfbfc522e075-medium.png

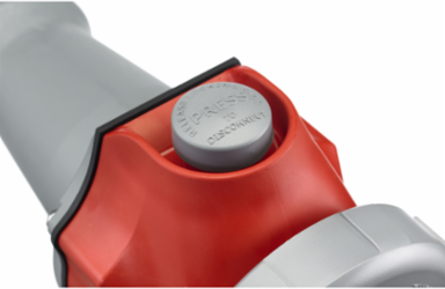

Watertight IEC Pin & Sleeve Female Connector, 30A, 4-Pole, 5-Wire - https://media.province-electric.com/325/synd_hubbell/medium/2df1473b1a87be369dee7f5984a1a8da4d1a3b99-medium.png

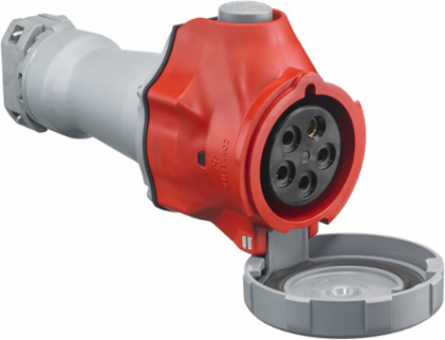

Watertight IEC Pin & Sleeve Female Connector, 30A, 4-Pole, 5-Wire - https://media.province-electric.com/325/synd_hubbell/medium/3327873f692ef3b3cef45e78cbe42a4a28546999-medium.png

Watertight IEC Pin & Sleeve Female Connector, 30A, 4-Pole, 5-Wire

MPN: HBLS530C7W
UPC: 783585550527
PPN: HBL-HBLS530C7W
UNSPSC: 39121402

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$963.32/ EA

Qty:

Loading add to cart quantity...

Description

Heavy Duty Pin and Sleeve Devices, Switched, IEC 309,Female Connector, 30A 277/480V, 4-Pole 5-Wire Grounding, NEMA 4X/IP67,Watertight

Features

Mates with existing installed base of IEC 60309-2 pin and sleeve devices
Approved as a diconnecting means for motor circuits and branch circuits
UL Type 4X, 12 and IP69k environmental ratings
Impact and corrosion-resistant PBT that is color coded by voltage
Unswitched ground and power indicating LED lights

Specifications

Country of Origin: United States

Width: 5.200 in

Color: Red

Number of Wires: 5-Wire

Voltage Rating: 3 Phase Y 277/480 VAC

Engineering Drawing 1 Display Text: HBLS530C7W AutoCAD Drawing

General Literature Asset 2 Display Text: IEC Pin & Sleeve Devices

Number Of Poles: 4-Pole

Style: IP69k NEMA 4X

Description - Invoice: PS, IEC,SW CONN, 4P5W, 30A 277/480V, WT

Harmonization Code: 8536694020

MSDS Flag: No

Series: Advantage® Series

BOX SIZE: 10.900x23.100x11.000 (in)

Carton - Number of Sub Packs: 10

Carton - SCC-14 Next Lower Level Sub Pack: 00783585550527

Case Weight: 27.950 lb.

Current / Amperage Rating30 A

Amperage Rating30 A

Number of Poles4-Pole

TypeWatertight Connector

Voltage Rating Description3 Phase Y 277/480 VAC

General Literature Asset 1 Display TextSafety Product Guide

General Literature Asset 3 Display TextAdvantage™ Series Switch-Rated IEC Pin & Sleeve Devices

Number Of Wires5-Wire

Class CodeA12

Freight Class Code06168002

Image Actual Or RepresentativeA

Sub Class CodeA12A180

Base Unit of MeasureEA

Carton - Gross Weight per Pack26.950 lb.

Carton - Pack DescriptionCarton

Carton - Total Units10 EA

Certifications

EU RoHS Indicator: Contact Manufacturer
