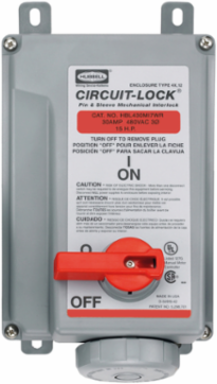

Hubbell Wiring Device-Kellems HBL430MI7WR Heavy Duty Female Mech Interlocked Receptacle, 30A, 3-Phase, 480V AC, Watertight
Hubbell Wiring Device-Kellems HBL430MI7WR Heavy Duty Female Mech Interlocked Receptacle, 30A, 3-Phase, 480V AC, Watertight
- MPN: HBL430MI7WR
- UPC: 783585012599
- PPN: HBL-HBL430MI7WR
- UNSPSC: 39121406
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2025.51/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws
Features
- Captured neoprene gasket for a watertight seal

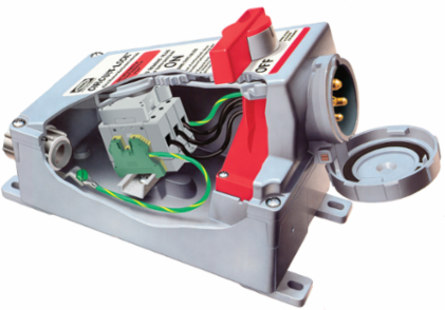

- DIN rail mounted switch for easy installation and replacement
- Solid pins for longer life and reliable electrical contact
- Watertight
Specifications
- Voltage
- 3 Phase 480 VAC
- Wattage
- 14400 W
- Number of Poles
- 3-Pole
- Connectivity
- Pressure Terminal Screws
- Seal Type
- Neoprene
- Mounting Type
- Screw Mounting
- Standards
- UL Listed, CSA Certified
- Dielectric Voltage
- 3000 V AC Min
- Operating Temperature
- -40°C to +75°C
- Country of Origin
- PR
Amperage30 A
PhaseThree Phase
Number of Wires4-Wire
MaterialThermoplastic, Valox, Zinc, Neoprene
Interlock TypeMechanical Interlock
NEMA RatingNon-NEMA
FlammabilityUL94-5VA, V-0
Max Working Voltage600 V AC RMS
ColorRed
Wire Size#12 AWG to #8 AWG
