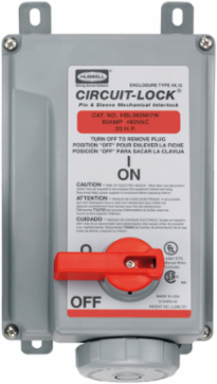

Hubbell Wiring Device-Kellems HBL360MI7W Heavy Duty Mechanically Interlocked Receptacle, 60A 480V AC, 2-Pole, Watertight
- MPN: HBL360MI7W
- UPC: 783585405865
- PPN: HBL-HBL360MI7W
- UNSPSC: 39121406
CAD
$2763.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 480V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Red, Watertight
Features
- Large gears enclosed in a gear box
- Lockable handle to meet OSHA Lockout/Tagout regulations
- Pre-wired IEC Pin and Sleeve receptacle
- Watertight
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 8.800 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Application | High Ampacity Watertight Connections |
| Environmental Conditions | Watertight |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Standard | UL Listed |
| Voltage Rating | 480 VAC |
| Wire Size | #8 AWG to #2 AWG |
| Weight | 8.5 lb. |
| General Literature Asset 1 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| General Literature Asset 3 Display Text | IEC Pin & Sleeve Devices |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Style | Standard Service |
| Description - Invoice | PS, IEC, MECHINT, 2P3W, 60A 480V, W/T |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Sub Class Code | A12A210 |
| Current Rating | 60 A |
| Series | Non-Fused |
| BOX SIZE | 7.100x14.800x8.800 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585405865 |
| Case Weight | 8.500 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 60 A |
|---|---|
| Industry Standard(s) | UL Listed |
| Amperage Rating | 60 A |
| Color | Red |
| NEMA Rating | Non-NEMA |
| Number of Wires | 3-Wire |
| Special Features | Watertight |
| Type | Mechanical Interlock |
| Wattage | 28800 W |
| Voltage Rating Description | 480 VAC |
| Engineering Drawing 1 Display Text | HBL360MI7W AutoCAD Drawing |
| General Literature Asset 2 Display Text | Circuit-Lock® Motor Disconnects |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Number Of Wires | 3-Wire |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 360MI7W |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| NAICS Code | 335931A104 |
