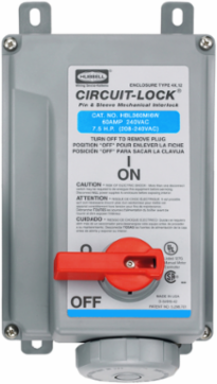

Hubbell Wiring Device-Kellems HBL360MI6W Heavy Duty Female Mechanically Interlocked Receptacle, 60A 250V AC, 2-Pole, Watertight
- MPN: HBL360MI6W
- UPC: 783585405858
- PPN: HBL-HBL360MI6W
- UNSPSC: 39121406
CAD
$2763.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 250V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Blue, Watertight
Features
- Large gears enclosed in a gear box
- Lockable handle to meet OSHA Lockout/Tagout regulations
- Pre-wired IEC Pin and Sleeve receptacle
- Watertight
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL360MI6W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Country of Origin
- Poland
- Width
- 8.800 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Application
- High Ampacity Watertight Connections
- Environmental Conditions
- Watertight
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- UL Listed
- Voltage Rating
- 240 VAC
- Wire Size
- #8 AWG to #2 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 3-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- MI360R6W
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.450 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585405857
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextIEC Pin & Sleeve Devices
Current / Amperage Rating60 A
Industry Standard(s)UL Listed
Amperage Rating60 A
ColorBlue
NEMA RatingNon-NEMA
Number of Wires3-Wire
Special FeaturesWatertight
TypeMechanical Interlock
Wattage15000
Voltage Rating Description240 VAC
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleStandard Service
Description - InvoicePS, IEC, MECHINT, 2P3W, 60A 250V, W/T
Harmonization Code8537109999
MSDS FlagNo
Sub Class CodeA12A210
Current Rating60 A
SeriesNon-Fused
BOX SIZE7.300x14.700x8.800 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585405858
Case Weight8.450 lb.
Lowest Level UOMEach
Pallet Height43.800 in
Pallet Weight709.800 lb.
NAICS Code335931A104
