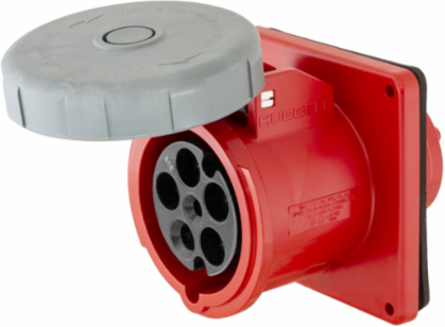

Hubbell Wiring Device-Kellems HBL530R7W Heavy Duty IEC 30A 3-Phase Watertight Female Receptacle, Red
- MPN: HBL530R7W
- UPC: 783585405513
- PPN: HBL-HBL530R7W
- UNSPSC: 39121406
CAD
$625.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight
Features
- Corrosion-resistant self-closing gasketed cover
- Insulated non-metallic housing
- Color coded housings for easy identification
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL530R7W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Width
- 5.600 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Electrical - Temperature Rise - Max. 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- High Ampacity Watertight Connections
- Environmental Conditions
- Watertight
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Standard
- CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
- Voltage Rating
- 3 Phase Y 277/480 VAC
- Wire Size
- #12 AWG to #8 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 5-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 530R7W
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 15.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585405512
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating30 A
Industry Standard(s)CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Amperage Rating30 A
ColorRed
NEMA RatingNon-NEMA
Number of Wires5-Wire
Special FeaturesWatertight
TypeWatertight Receptacle
Wattage14400
Voltage Rating Description3 Phase Y 277/480 VAC
Display SizeStandard Sized Product
Number Of Poles4-Pole
StyleStandard Service
Description - InvoicePS, IEC, RECP, 4P5W, 30A 277/480V, W/T
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA12A180
Current Rating30 A
SeriesHBL Heavy Duty
BOX SIZE8.200x24.800x11.800 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585405513
Case Weight16.300 lb.
Lowest Level UOMEach
Pallet Height41.000 in
Pallet Weight489.000 lb.
NAICS Code335931A104
