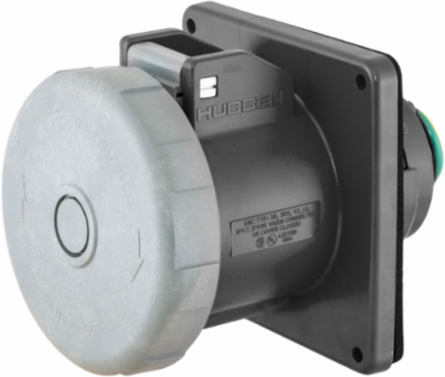

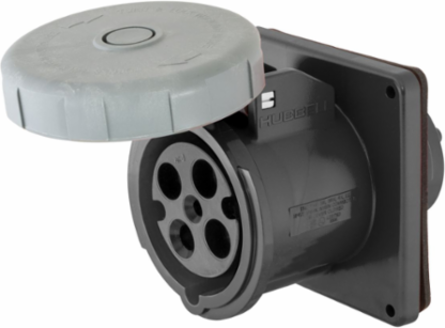

Hubbell Wiring Device-Kellems HBL420R5W Heavy Duty IEC Female Receptacle, 20A 3-Phase 600V AC, Watertight, 3-Pole 4-Wire
- MPN: HBL420R5W
- UPC: 783585404417
- PPN: HBL-HBL420R5W
- UNSPSC: 39121406
CAD
$407.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 20A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
Features
- Corrosion-resistant self-closing gasketed cover
- Insulated non-metallic housing
- Color coded housings for easy identification
- Watertight
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 3-Pole
- Temperature Range
- -40 C to 75 C
- Temperature Rise
- Max 30 C at full rated current after 50 cycles overload
- Mounting Type
- Screw Mounting
- Material
- Thermoplastic
- Gasket Material
- Solid Neoprene
- Mounting Flange Material
- Zytel 101 Nylon
- Compliance
- UL Listed; CSA C22.2 No. 182.1; IEC 60309-1
- Color
- Black
Voltage600 V AC, 3 Phase
Number of Wires4-Wire
Wattage12000 W
Current Interrupting CertificationCertified at full rated current
Connection TypePressure Terminal Screws
Cover MaterialNickel-plated brass
Housing MaterialZytel 101 Nylon
Ingress ProtectionIP67
NEMA RatingNon-NEMA
Country of OriginUS
