Hubbell Wiring Device-Kellems HBL3100B4W IEC Pin and Sleeve 100A Watertight Inlet, 125V AC, 3-Wire
- MPN: HBL3100B4W
- UPC: 783585403007
- PPN: HBL-HBL3100B4W
- UNSPSC: 39121406
CAD
$1298.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

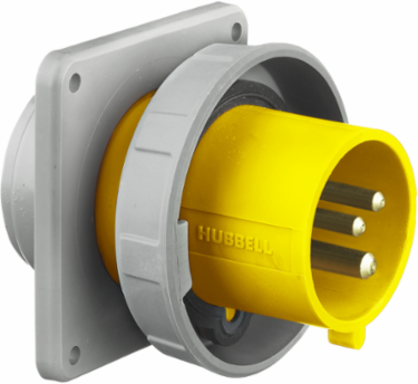

Heavy Duty IEC Pin and Sleeve Industrial Grade Male Flanged Inlet, 100A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.750 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- High Ampacity Watertight Connections
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
- Type
- Watertight Inlet
- Wattage
- 12500
- Voltage Rating Description
- 125 VAC
- General Literature Asset 1 Display Text
- IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, INLET, 2P3W, 100A 125V,4X/69K
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 100 A
- Series
- HBL Heavy Duty
- BOX SIZE
- 12.000x6.380x22.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585403007
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
Current / Amperage Rating100 A
Industry Standard(s)CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Amperage Rating100 A
ColorYellow
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Wires3-Wire
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating125 VAC
Wire Size#3 AWG to #1/0 AWG
Engineering Drawing 1 Display TextHBL3100B4W AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires3-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number3100B4W
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack30.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
