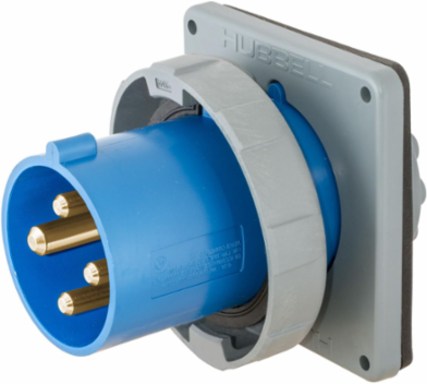

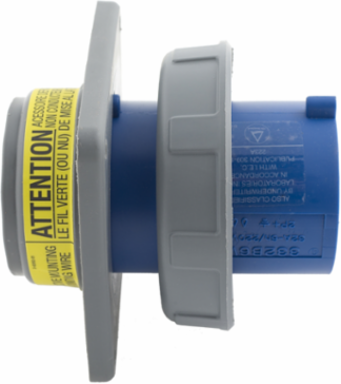

Hubbell Wiring Device-Kellems HBL4100B9W IEC Pin and Sleeve 100A Watertight Inlet, 3-Phase 250V AC, 4-Wire
- MPN: HBL4100B9W
- UPC: 783585403960
- PPN: HBL-HBL4100B9W
- UNSPSC: 39121406
CAD
$1346.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade Male Flanged Inlet, 100A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Watertight
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
- Watertight
Specifications
Additional
- Amperage
- 100 A
- Number of Poles
- 3-Pole
- Wattage
- 25000 W
- Dielectric Strength
- 3000 V AC
- Material
- Thermoplastic, Zytel 101 Nylon, Solid Neoprene
- Mounting
- Flanged, Screw Mounting
- NEMA Rating
- Non-NEMA
- Connectivity
- Pressure Terminal Screws
- Country of Origin
- US
Voltage3 Phase 250 V AC
Number of Wires4-Wire
Temperature Rating-40°C to 75°C
Wire Size#3 AWG to #1/0 AWG
Material - Mounting HardwareScrew Mounting
Ingress ProtectionIP67
ComplianceCSA Certified, UL Listed, IEC 60309-1, IEC 60309-2, RoHS Compliant
ColorBlue
