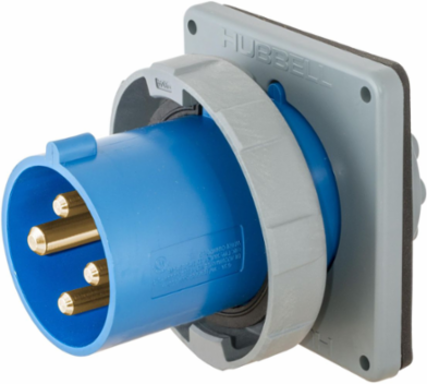

Hubbell Wiring Device-Kellems HBL430B9W IEC Pin and Sleeve Male Flanged Inlet 30A 3-Phase 250V AC Watertight
- MPN: HBL430B9W
- UPC: 783585404486
- PPN: HBL-HBL430B9W
- UNSPSC: 39121406
CAD
$608.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade Male Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Watertight
Features
- Rugged one-piece housing
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
- Watertight
Specifications
Additional
- Amperage
- 30 A
- Phase
- Three Phase
- Number of Wires
- 4-Wire
- Temperature Range
- -40°C to 75°C
- Dielectric Voltage Withstand
- 3000 V AC
- Mounting Style
- Flanged
- Housing Material
- PBT
- Sealing Gasket Material
- Solid Neoprene, Santoprene
- Terminal Screws Material
- Stainless Steel
- Terminal Identification
- North American and IEC conventions
- Ingress Protection
- Type 3R, 3RX, 4X, IP68, IP69K
- EU RoHS Indicator
- Yes
- Color
- Blue
Voltage250 V AC
Number of Poles3-Pole
Wattage7500 W
Current InterruptingCertified for full rated current
Max Working Voltage600 V AC RMS
MaterialThermoplastic
Locking Ring MaterialPBT
Retainer MaterialHigh-Impact Thermoset
Impact ResistancePer CSA C22.2 No. 182.1, UL 1682
FlammabilityV-0
NEMA RatingNon-NEMA
Country of OriginUS
