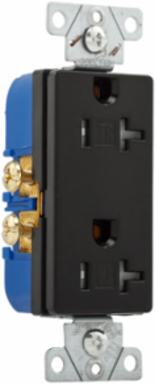

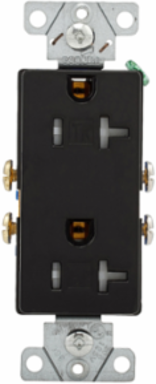

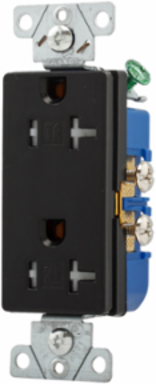

Cooper Wiring Devices TR1307BK-BOX Decorator Duplex Receptacle, Tamper-Resistant, 20A, 125V, NEMA 5-20R, Black
- MPN: TR1307BK-BOX
- UPC: 032664729645
- PPN: COW-TR1307BK-BOX
CAD
$3.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton residential grade decorator duplex receptacle, #14-10 AWG, 20A, Commercial, Residential, Flush, 125V, Side wire, Black, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Duplex, Screw, Thermoplastic, ED Box
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 20A |
|---|---|
| NEMA Configuration | 5-20R |
| Allowable Wire Size | Side Wiring: #10-14 Copper or Copper Clad Aluminum |
| Number of Wires | 3 |
| Length | 1.31 in |
| Width | 0.74 in |
| Face/Body Material | Impact-resistant thermoplastic face, PVC body |
| Color | Black |
| Design Type | Straight blade |
| Connection Type | Screw |
| Application | Commercial/residential |
| Voltage Rating | 125V |
|---|---|
| Wiring Method | Side wire |
| Number of Poles | Two-pole |
| Torque Rating | 14 lbf-inch |
| Height | 4.19 in |
| Mounting Method | Flush |
| Contact Material | Brass |
| Style Type | Decorator |
| Receptacle Type | Duplex |
| Device Grade | Standard grade |
