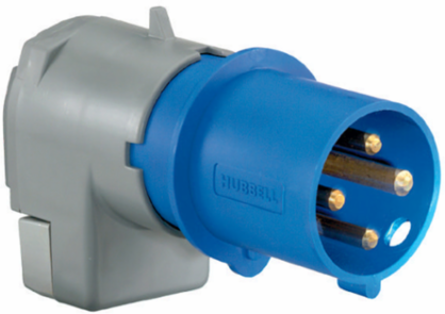

Hubbell Wiring Device-Kellems A5100P9 Heavy Duty IEC Male Plug, 100A 4-Pole, 3-Phase Wye 120/208V AC, Blue
- MPN: A5100P9
- UPC: 783585392875
- PPN: HBL-A5100P9
- UNSPSC: 39121402
CAD
$1027.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male Plug, 100A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Blue, Angled
Features
- Solid one-piece pins for reliable electrical contact
- Recessed pins are protected from impact and abuse
- Integrated Cord Grip limits strain on terminals
- IP22 Environmental Rating
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 8.800 in
- Amperage Rating
- 100 A
- Color
- Blue
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Type
- IP22 Angled Plug
- Wire Size
- #3 AWG to #1/0 AWG
- Engineering Drawing 1 Display Text
- A5100P9 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 5-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A180
- Current Rating
- 100 A
- Series
- Low Profile
- BOX SIZE
- 6.000x10.500x8.800 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585392875
- Case Weight
- 3.650 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating100 A
PerformanceElectrical - Current Interrupting - Certified for current interruption at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 250V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP22 Suitability;Environmental - Operating Temperatures - Max. Continuous +75°C;Min. -40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American convention
ApplicationHigh Ampacity Connections
Cord TypeAll Portable
NEMA RatingNon-NEMA
Number of Wires5-Wire
Special FeaturesIP22 Environmental Rating
Voltage Rating3 Phase Y 120/208 VAC
Voltage Rating Description3 Phase Y 120/208 VAC
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized
Number Of Poles4-Pole
StyleStandard Service
Description - InvoicePS, IEC, PLUG, 4P5W, 100A 120/208V,LOPRO
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.650 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet Height47.000 in
Pallet Weight474.350 lb.
NAICS Code335931A104
