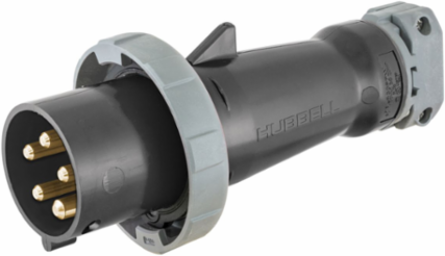

Hubbell Wiring Device-Kellems HBL520P5W Watertight 20A Male Plug, 3-Phase Wye 347/600V AC, 5-Wire, 4-Pole
- MPN: HBL520P5W
- UPC: 783585405322
- PPN: HBL-HBL520P5W
- UNSPSC: 39121402
CAD
$436.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 20A 3-Phase Wye 347/600V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Black, Watertight
Features
- Solid one-piece pins machined from solid brass
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL520P5W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Width
- 4.130 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Amperage Rating
- 20 A
- Color
- Black
- Environmental Conditions
- Watertight
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Standard UL1682 and UL 1686C2
- Voltage Rating
- 3 Phase Y 347/600 VAC
- Voltage Rating Description
- 3 Phase Y 347/600 VAC
- Display Size
- Standard Sized
- Number Of Poles
- 4-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, PLUG, 4P5W, 20A 347/600V, W/T
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 20 A
- Series
- HBL Heavy Duty
- BOX SIZE
- 8.625x20.625x8.495 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585405322
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating20 A
Industry Standard(s)CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Standard UL1682 and UL 1686C2
Standards - RoHS Compliance StatusCM
ApplicationHigh Ampacity Connections
Cord TypeAll Portable
NEMA RatingNon-NEMA
Number of Wires5-Wire
Special FeaturesWatertight
TypeWatertight Plug
Wire Size#1 AWG to #250MCM
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number520P5W
Material - Mounting HardwareCord Mounted
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack13.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
