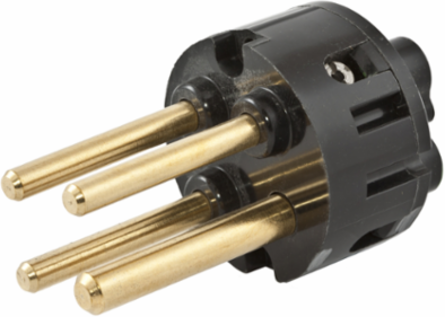

Hubbell Wiring Device-Kellems IN420DM IEC Male Replacement Interior Device, 20A 4-Wire, 2.500 Inch, Black Thermoset Polyester
- MPN: IN420DM
- UPC: 783585420097
- PPN: HBL-IN420DM
- UNSPSC: 39121406
CAD
$224.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Replacement Interior, For 20A 4-Wire, Furnished with Screws, Black Thermoset Polyester
Features
- Thermoset Polyester Contact Carrier
- Withstands higher temperatures due to overload or arcing
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.500 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Application
- High Ampacity Connections
- Environmental Conditions
- Watertight When Installed
- Number of Poles
- 3-Pole
- Special Features
- Standard Product
- Type
- Replacement Interior
- Wire Size
- #14 AWG to #12 AWG
- General Literature Asset 1 Display Text
- IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- For Plugs/Inlets
- Description - Invoice
- PS,IEC,REPINT,4W,20A 250/480/600V,MALE
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
Current / Amperage Rating16 A
Industry Standard(s)UL Listed
Amperage Rating16 A
ColorBlack
NEMA RatingNon-NEMA
Number of Wires4-Wire
StandardUL Listed
Voltage Rating380-415 VAC
Voltage Rating Description380-415 VAC
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Current Rating20 A
SeriesAccessories
BOX SIZE5.900x8.400x6.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585420097
Case Weight3.300 lb.
Lowest Level UOMEach
