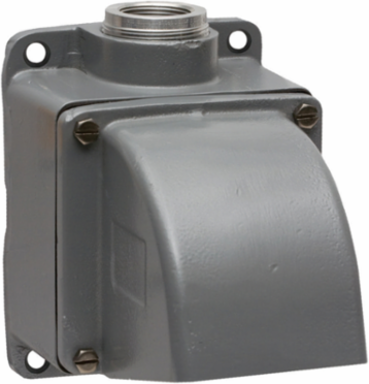

Hubbell Wiring Device-Kellems MB601003W Insulgrip Back Box for 60A/100A Devices, 1-1/2 Inch NPT Hub, Cast Aluminum
- MPN: MB601003W
- UPC: 783585011240
- PPN: HBL-MB601003W
- UNSPSC: 39121332
CAD
$569.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade, Back Box, for 60A and 100A 1½" NPT Hub, Angled, Mounting Screws Included
Features
- Industrial Grade
- Accessories
- Back Box
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- MB601003W AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Width
- 6.300 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Application
- Metallic
- Knockouts
- 1 1/2" NPT Hub
- Special Features
- Standard Product
- Temperature Range
- Limited By Device
- Display Size
- For 60 and 100 Amp Devices
- Style
- 15 Degree
- Description - Invoice
- PS, INS, ANG BOX,60/100A,1 1/2" HUB,ALUM
- Harmonization Code
- 7616999999
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 33.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- Each - Pack Description
- Each
- NAICS Code
- 3359326103
General Literature Asset 1 Display TextPulp & Paper Solutions
Country of OriginChina
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
Cable EntryThrough Hub
Number of OutletAccepts 1-Device
StandardUL Listed
TypeFour-Way Back Box
Number Of OutletsAccepts 1-Device
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
ConstructionCast
SeriesBack Boxes and Adapters Series
BOX SIZE18.100x15.700x16.800 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783585011240
Case Weight33.250 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
