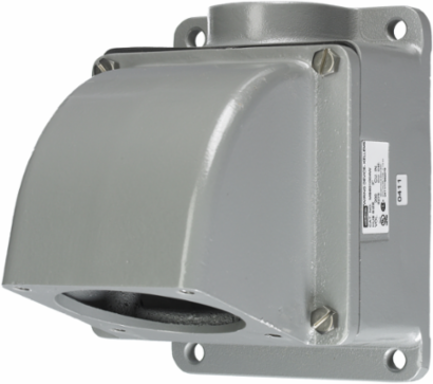

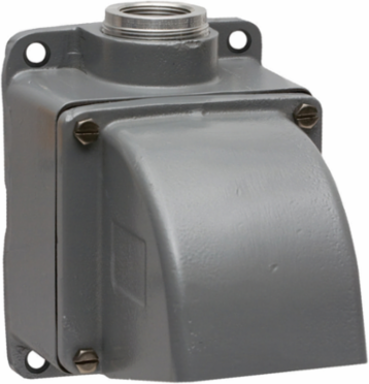

Hubbell Wiring Device-Kellems MB601004W Insulgrip Back Box for 60A/100A 2 Inch NPT Hub, Cast Aluminum, 15 Degree Angle
- MPN: MB601004W
- UPC: 783585011264
- PPN: HBL-MB601004W
- UNSPSC: 39121332
CAD
$575.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade, Back Box, for 60A and 100A 2" NPT Hub, Angled, Mounting Screws Included
Features
- Industrial Grade
- Back Box
- For 60A and 100A 2" NPT Hub
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- MB601004W AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Width
- 8.800 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Application
- Metallic
- Knockouts
- 2" NPT Hub
- Special Features
- Standard Product
- Temperature Range
- Limited By Device
- Display Size
- For 60 and 100 Amp Devices
- Style
- 15 Degree
- Description - Invoice
- PS, INS, ANG BOX,60/100A,2" HUB,ALUM
- Harmonization Code
- 7616999999
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 31.700 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- Each - Pack Description
- Each
- NAICS Code
- 3359326103
General Literature Asset 1 Display TextPulp & Paper Solutions
Country of OriginChina
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
Cable EntryThrough Hub
Number of OutletAccepts 1-Device
StandardUL Listed
TypeFour-Way Back Box
Number Of OutletsAccepts 1-Device
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
ConstructionCast
SeriesBack Boxes and Adapters Series
BOX SIZE18.700x15.900x15.800 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783585011264
Case Weight31.700 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
