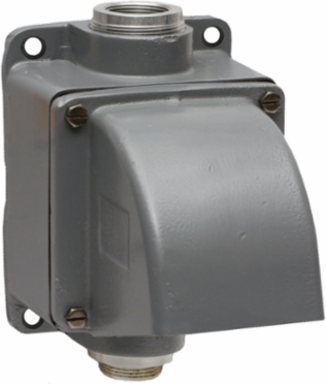

Hubbell Wiring Device-Kellems MB601008W Heavy Duty Insulgrip 2 Inch Back Box for 60A & 100A Devices, Aluminum
- MPN: MB601008W
- UPC: 783585011349
- PPN: HBL-MB601008W
- UNSPSC: 39121332
CAD
$601.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Accessories, Back Box, For 60A and 100A 2" NPT Hub, Feed Thru, Mounting Screws Included, Gray Cast Aluminum
Features
- Industrial Grade
- Back Box
- For 60A and 100A 2" NPT Hub
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Listed
- Standards - RoHS Compliance Status
- CM
- Cable Entry
- Through Hub
- Number of Outlet
- Accepts 1-Device
- Standard
- UL Listed
- Type
- Four-Way Feed-Thru Back Box
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Display Size
- For 60 and 100 Amp Devices
- Style
- 15 Degree
- Description - Invoice
- PS, INS, FTHRU BOX, 60/100A, 2" HUB,ALUM
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585011349
- Lowest Level UOM
- Each
Width6.800 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
ApplicationMetallic
Knockouts2" NPT Hub
Special FeaturesStandard Product
Temperature RangeLimited By Device
Engineering Drawing 1 Display TextMB601008W AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Number Of OutletsAccepts 1-Device
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
ConstructionCast
SeriesBack Boxes and Adapters Series
BOX SIZE(in)
Each - Pack DescriptionEach
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Yes
