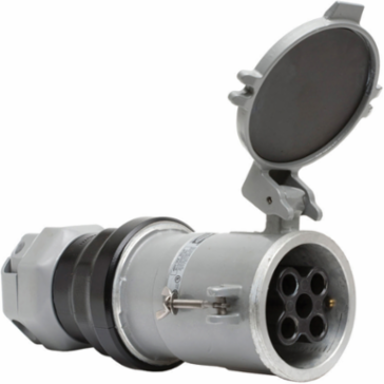

Hubbell Wiring Device-Kellems HBL5100CS1W Insulgrip Female Connector Body 100A 600V AC 4-Pole
Hubbell Wiring Device-Kellems HBL5100CS1W Insulgrip Female Connector Body 100A 600V AC 4-Pole
- MPN: HBL5100CS1W
- UPC: 783585011165
- PPN: HBL-HBL5100CS1W
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1394.20/ EA
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 100A 600V AC, 3-Pole 4-Wire Grounding Style 1,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Specifications
Specifications
- Country of Origin
- PR
- Width
- 5.750 in
- Industry Standard(s)
- CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
- Amperage Rating
- 100 A
- Conductor Range
- #4 AWG to #2 AWG
- Insulation
- Insulated Body
- Number of Conductors
- 5-Wire Grounding
- Special Features
- Watertight
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 600 VAC/250 VDC
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Poles
- 4-Pole
- Style
- Standard Service, Style 1
- Description - Invoice
- PS, INS, CONN, 4P5W, 100A 600V, S1
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 27.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 6 EA
- Lowest Level UOM
- Each
Current / Amperage Rating100 A
Each - Width5.750 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
ApplicationMetallic with Nylon Shroud
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Poles4-Pole
StandardCSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
TypeWatertight Connector
Voltage Rating Description600V AC/250V DC
Display SizeStandard
Number Of Conductors5-Wire Grounding
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
Current Rating100 A
SeriesUL 1686 Class 1 Insulgrip®
BOX SIZE10.375x17.505x12.185 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack783585011165
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
