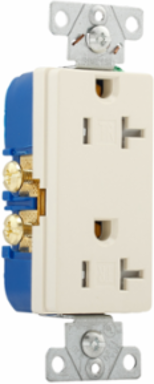

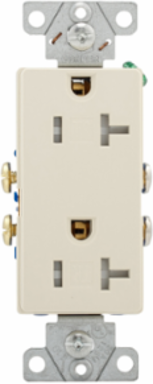

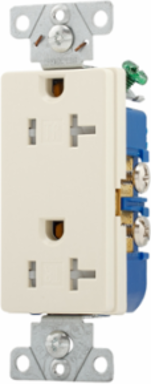

Cooper Wiring Devices TR1307LA-BOX Decorator Duplex Receptacle, Tamper-Resistant, 20A, 125V, NEMA 5-20R, Light Almond
- MPN: TR1307LA-BOX
- UPC: 032664729669
- PPN: COW-TR1307LA-BOX
CAD
$3.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton residential grade decorator duplex receptacle, #14-10 AWG, 20A, Commercial, Residential, Flush, 125V, Side wire, Light almond, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Duplex, Screw, Thermoplastic, ED Box
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 20A
- NEMA Configuration
- 5-20R
- Allowable Wire Size
- Side Wiring: #10-14 Copper or Copper Clad Aluminum
- Number of Wires
- 3
- Length
- 1.31 in
- Width
- 0.74 in
- Face/Body Material
- Impact-resistant thermoplastic face, PVC body
- Color
- Light almond
- Design Type
- Straight blade
- Connection Type
- Screw
- Application
- Commercial/residential
Voltage Rating125V
Wiring MethodSide wire
Number of PolesTwo-pole
Torque Rating14 lbf-inch
Height4.19 in
Mounting MethodFlush
Contact MaterialBrass
Style TypeDecorator
Receptacle TypeDuplex
Device GradeStandard grade
