Hubbell Wiring Device-Kellems

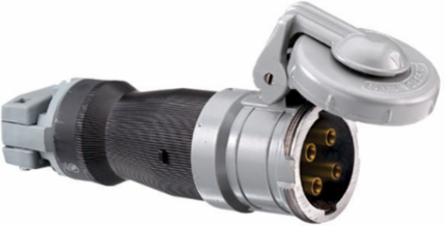

Hubbell Wiring Device-Kellems HBL430CS2WR Insulgrip Female Connector Body 30A 600V AC, 3-Pole 4-Wire

Insulgrip Female Connector Body 30A 600V AC, 3-Pole 4-Wire
  • MPN: HBL430CS2WR
  • UPC: 783585012353
  • PPN: HBL-HBL430CS2WR
  • UNSPSC: 39121421

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$661.69/ EA

Description

Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 30A 600V AC, 3-Pole 4-Wire Grounding Style 2,Terminal Screws

Features

  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight

Specifications

Amperage
30 A
Number of Poles
3-Pole
Temperature Rating
-40°C to 75°C Continuous, -25°C with impact
Material
Composite
Connector Shroud Material
Epoxy Painted Aluminum
Clamp Nut Material
Nickel Plated Brass
Seal Type
O-Ring, Neoprene Gasket
NEMA Rating
Non-NEMA
Voltage600 VAC / 250 VDC
Number of Conductors4-Wire Grounding Style 2
ConnectivityPressure Terminal Screws
Housing MaterialValox 357
Cord Clamps MaterialRynite SST35
Gland MaterialNeoprene
StandardsUL 1682, CSA C22.2 No. 182.1, UL Listed, CSA Type 4X
Country of OriginPR
