Hubbell Wiring Device-Kellems

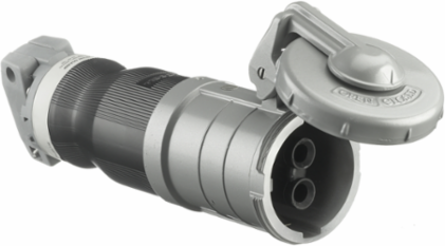

Hubbell Wiring Device-Kellems HBL360CS1W Insulgrip Female Connector 60A 600V AC, 2-Pole, Watertight

Insulgrip Female Connector 60A 600V AC, 2-Pole, Watertight
  • MPN: HBL360CS1W
  • UPC: 783585010441
  • PPN: HBL-HBL360CS1W
  • UNSPSC: 39121421

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$955.63/ EA

Description

Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 60A 600V AC, 2-Pole 3-Wire Grounding Style 1,Terminal Screws

Features

  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight

Specifications

Amperage
60 A
Number of Poles
2-Pole
Grounding Style
Style 1
Dielectric Voltage Withstand
3000 V AC
Seal Type
Watertight, Neoprene gasket
Housing Material
Valox 357
Cord Clamps Material
Rynite SST35
Flammability Rating
UL 94V-0, CSA C22.2 No. 0.17
Standards
CSA C22.2 No. 182.1; UL 1682; UL Listed and CSA Certified Type 4X
Voltage600 VAC / 250 VDC
Number of Conductors3-Wire Grounding
Current InterruptingCertified for full rated current
Operating Temperature-40C w/o impact, -25C with impact to 75C
MaterialComposite
Connector Shroud MaterialEpoxy Painted Aluminum
Clamp Nut MaterialNickel Plated Brass
NEMA RatingNon-NEMA
Country of OriginPR
