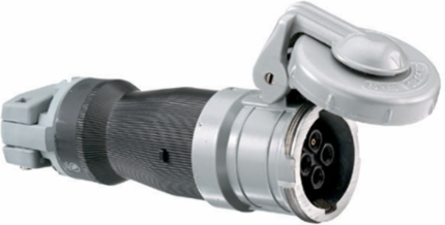

Hubbell Wiring Device-Kellems HBL560CS1W Heavy Duty Insulgrip 60A 600V AC Female Connector, 4-Pole, 5-Wire, Watertight
- MPN: HBL560CS1W
- UPC: 783585010687
- PPN: HBL-HBL560CS1W
- UNSPSC: 39121421
CAD
$1101.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 60A 600V AC, 3-Pole 4-Wire Grounding Style 1, Terminal Screws Gray and Black
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A
- Number of Poles
- 4-Pole
- Watertight
- Yes
- Conductor Range
- #6 AWG to #4 AWG
- Material
- Composite
- Standards
- UL 1682; CSA C22.2 No. 182.1; UL Listed Type 4X
- Moisture Resistance
- Type 3, 4, 4X
- Country of Origin
- PR
Voltage600 VAC/250 VDC
Number of Wires5-Wire Grounding
Temperature Range-40°C to 75°C
ConnectivityPressure Terminal Screws
NEMA RatingNon-NEMA
Flammability RatingUL 94V-0
StyleStandard Service, Style 1
